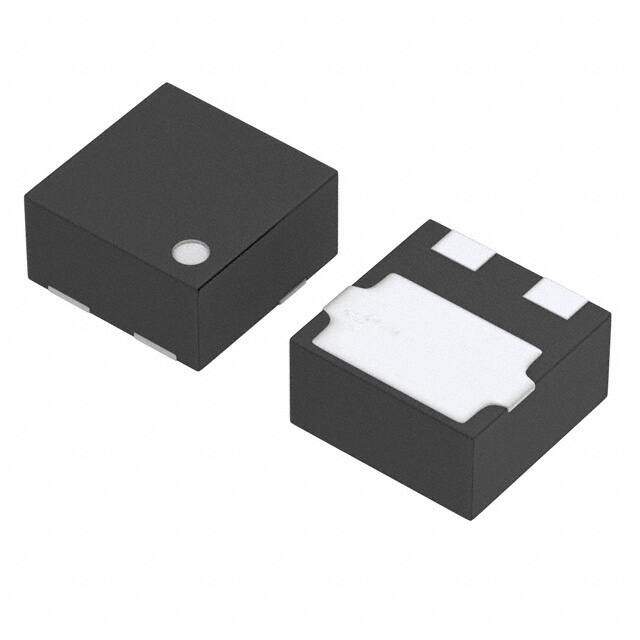

XC6501P301HR-G
RoHS
RoHS compliant
RoHS compliantPackage 2-SFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
XC6501 Tape & Reel (TR) Surface Mount Over Current Short Circuit voltage regulator linear 150mV 0.6mm 200mA -40C~85C
PDF
/
Inventory: 6666
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.6mm
Technical
Min Current Limit 210mA
Dropout Voltage 150mV
PSRR 50dB (1kHz)
Voltage Dropout (Max) 0.36V @ 100mA
Current - Quiescent (Iq) 20μA
Protection Features Over Current, Short Circuit
Number of Regulators 1
Input Voltage (Min) 3.5V
Output Voltage 1 3V
Current - Output 200mA
Output Configuration Positive
Output Type Fixed
Output Voltage 3V
Voltage - Input (Max) 6V
JESD-30 Code S-XXSS-N3
Base Part Number XC6501
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Technology CMOS
Terminal Finish Nickel/Silver/Gold (Ni/Ag/Au)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 2-SFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
