XC6221A2527R-G
RoHS
RoHS compliant

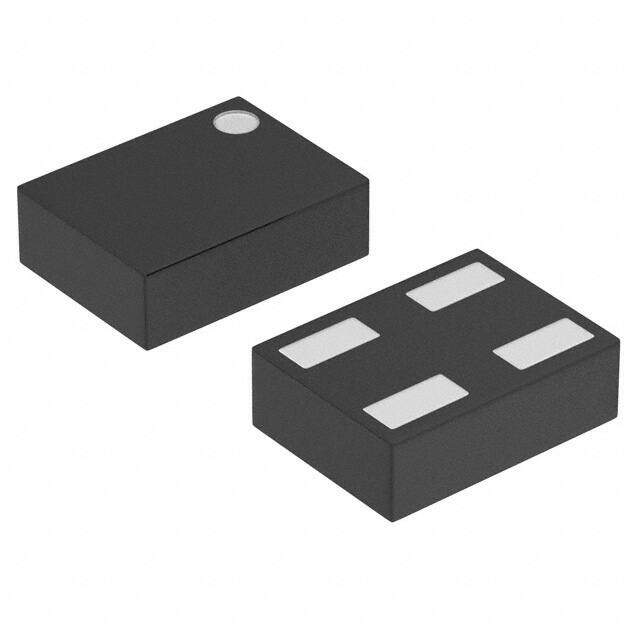

RoHS compliantPackage 4-UDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
XC6221 Tape & Reel (TR) Surface Mount Over Current Short Circuit voltage regulator linear 95mV 0.55mm 50muA -40C~85C
PDF
/
Inventory: 2621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 0.9mm
Technical
Input Voltage Absolute-Max 6.5V
Min Current Limit 200mA
Output Current1-Max 0.25A
Voltage Tolerance-Max 2%
Dropout Voltage1-Nom 0.095V
Dropout Voltage 95mV
PSRR 70dB (1kHz)
Voltage Dropout (Max) 0.17V @ 100mA
Current - Quiescent (Iq) 50μA
Protection Features Over Current, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 2.5V
Output Voltage 1 2.5V
Control Features Enable
Output Configuration Positive
Output Type Fixed
Output Voltage 2.5V
Voltage - Input (Max) 6V
Qualification Status Not Qualified
Number of Outputs 1
Base Part Number XC6221
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 0.55mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Nickel/Gold (Ni/Au)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 4
Package / Case 4-UDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
