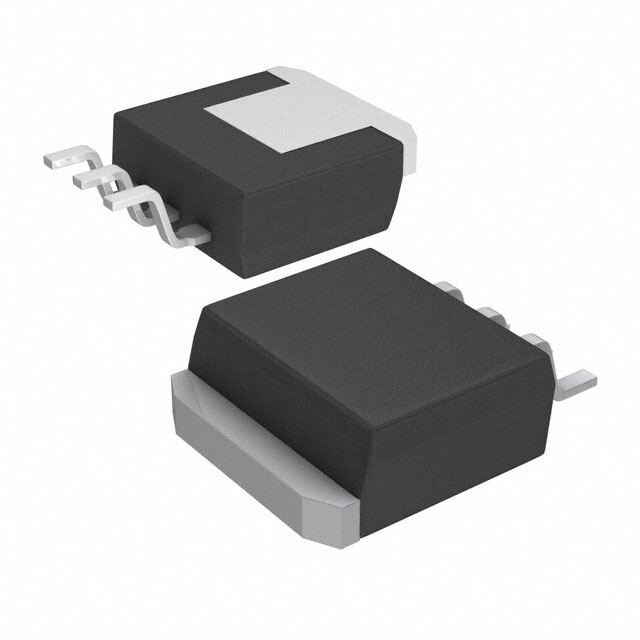

UCC383TDKTTT-5G3
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape and Reel RoHS Compliant Matte Tin (Sn) SINGLE voltage regulator linear 400mV 5.08mm 3A 70C
PDF
/
Buying Options
Total Price: USD $5.9
Unit Price: USD $5.9014
≥1 USD $5.9014
≥10 USD $4.84215
≥100 USD $4.6911
≥500 USD $4.5391
≥1000 USD $4.38805
Inventory: 1382
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 5.08mm
Technical
Load Regulation-Max(%) 0.02%
Output Voltage Accuracy 2.5 %
Min Current Limit 4A
Min Output Voltage 5V
Dropout Voltage1-Nom 0.4V
Dropout Voltage 400mV
Max Input Voltage 9V
Current - Input Bias 400μA
Min Input Voltage 5.4V
Output Voltage 1 5V
Voltage - Output 5V
Max Output Voltage 5V
Accuracy 2.5 %
Quiescent Current 400μA
Current - Output 3A
Polarity Positive
Max Output Current 3A
Output Type Fixed
Number of Outputs 1
Pin Count 4
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Technology BICMOS
Subcategory Other Regulators
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e3
Packaging Tape and Reel
Physical
Number of Pins 3
Surface Mount YES
Package / Case TO-263
