UA7908CKTER
RoHS
RoHS compliant

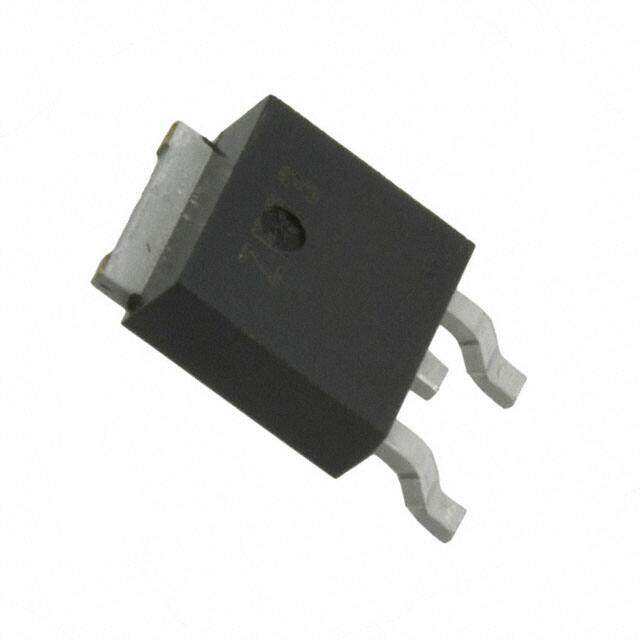

RoHS compliantPackage TO-252-4, DPak (3 Leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
UA7908 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 1.1V 9.395mm 1.5A 0C~125C
PDF
/
Inventory: 8298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Width 8mm
Length 9.395mm
Technical
Input Voltage Absolute-Max 35V
Voltage Tolerance-Max 5%
Dropout Voltage1-Nom 1.1V
Dropout Voltage 1.1V
PSRR 60dB (120Hz)
Voltage Dropout (Max) 1.1V @ 1A
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Output Voltage 1 8V
Quiescent Current 1.5mA
Current - Output 1.5A
Output Configuration Negative
Output Type Fixed
Output Voltage -8V
Voltage - Input (Max) -25V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSSO-G3
Pin Count 3
Base Part Number UA7908
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Other Regulators
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
Packaging Tape & Reel (TR)
Operating Temperature 0°C~125°C
Physical
Package / Case TO-252-4, DPak (3 Leads + Tab)
Mounting Type Surface Mount
Mount Surface Mount
