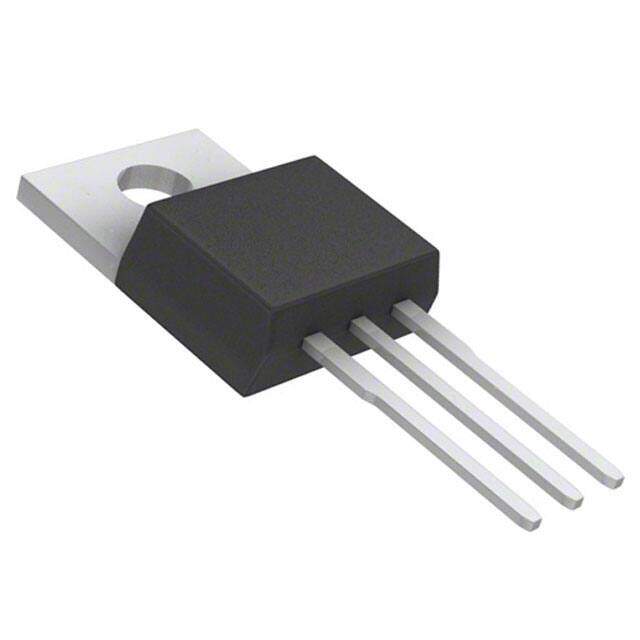

UA78M05CKCS
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
UA78M05 Tube Through Hole Over Current Over Temperature Short Circuit voltage regulator linear 2V 4.7mm 500mA 0C~125C
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.1328
≥1 USD $3.1328
≥10 USD $2.81336
≥100 USD $2.659712
≥500 USD $2.305072
≥1000 USD $2.186906
Inventory: 300
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case TO-220-3
Surface Mount NO
Number of Pins 3
Weight 1.905003g
Technical
Operating Temperature 0°C~125°C
Packaging Tube
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number UA78M05
Pin Count 3
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 25V
Output Voltage 5V
Output Type Fixed
Max Output Current 500mA
Output Configuration Positive
Quiescent Current 6mA
Max Output Voltage 5V
Output Voltage 1 5V
Number of Regulators 1
Min Input Voltage 7V
Protection Features Over Current, Over Temperature, Short Circuit
Voltage Dropout (Max) 2V @ 350mA
PSRR 80dB (120Hz)
Dropout Voltage 2V
Dropout Voltage1-Nom 2V
Min Output Voltage 5V
Power Supply Rejection Ratio (PSRR) 80dB
Voltage Tolerance-Max 5%
Nominal Output Voltage 5V
