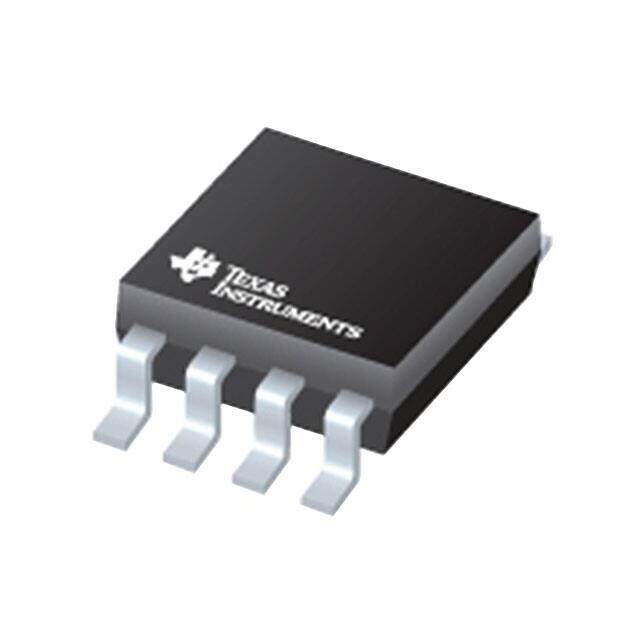

TPS7B8233QDGNRQ1
RoHS
RoHS compliant
RoHS compliantPackage 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS7B8233 Cut Tape (CT) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 3.366V 3mm 300mA -40C~125C TA
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.6632
≥1 USD $1.6632
≥10 USD $1.496
≥100 USD $1.410816
≥500 USD $1.202168
≥1000 USD $1.128794
≥3000 USD $0.987677
Inventory: 1130
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Technical
Output Voltage1-Min 3.234V
Output Voltage1-Max 3.366V
Dropout Voltage1-Nom 0.4V
PSRR 60dB (100Hz)
Voltage Dropout (Max) 1.25V @ 300mA 1V @ 300mA
Current - Quiescent (Iq) 5μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 3.3V 5V
Input Voltage (Min) 4.55V
Output Voltage 1 3.3V
Control Features Enable
Current - Output 300mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 40V
Number of Outputs 1
JESD-30 Code S-PDSO-G8
Base Part Number TPS7B8233
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Number of Terminations 8
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Series Automotive, AEC-Q100
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
