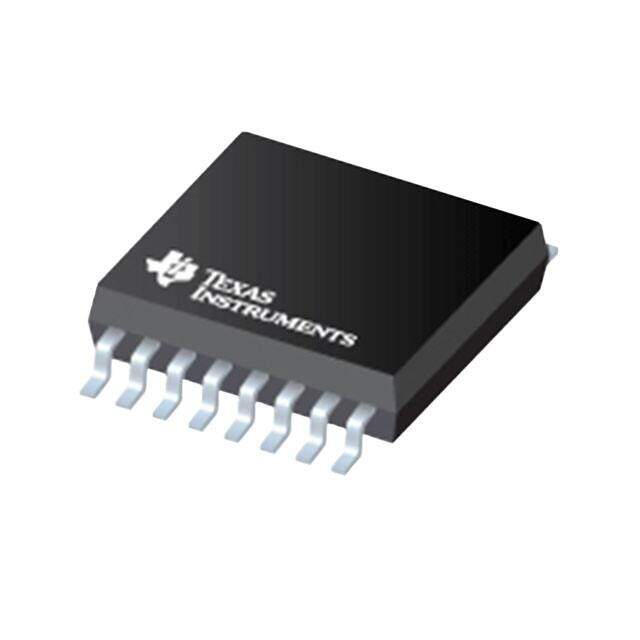

TPS7B7050QPWPRQ1
RoHS
RoHS compliant
RoHS compliantPackage 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS7B7050 Cut Tape (CT) Surface Mount Over Current Over Temperature voltage regulator linear 0.3V 5mm 300mA -40C~125C TA
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.6984
≥1 USD $1.6984
≥10 USD $1.52856
≥100 USD $1.442144
≥500 USD $1.228656
≥1000 USD $1.153645
≥3000 USD $1.009448
Inventory: 1254
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Cut Tape (CT)
Series Automotive, AEC-Q100
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 0.65mm
Reach Compliance Code compliant
Base Part Number TPS7B7050
Number of Outputs 1
Voltage - Input (Max) 40V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA
Control Features Current Limit
Output Voltage 1 5V
Input Voltage (Min) 6V
Voltage - Output (Min/Fixed) 5V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 29.6μA
Voltage Dropout (Max) 0.4V @ 300mA
PSRR 60dB ~ 40dB (100Hz ~ 100kHz)
Dropout Voltage1-Nom 0.3V
Output Voltage1-Min 4.875V
Dimensions
Length 5mm
Width 4.4mm
Compliance
RoHS Status RoHS Compliant
