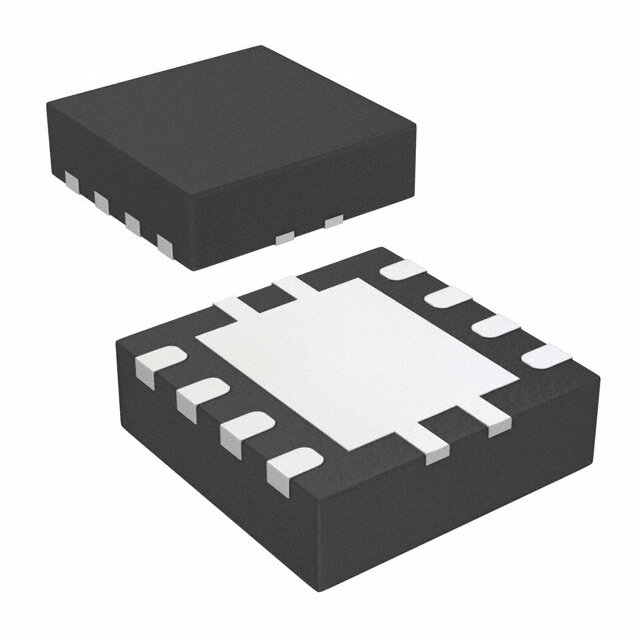

TPS7A8050DRBR
RoHS
RoHS compliant
RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS7A8050 Tape & Reel (TR) Surface Mount Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) voltage regulator linear 0.17V 1mm 1A -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.350011
≥1 USD $1.350011
≥10 USD $1.16687
≥100 USD $1.051753
≥500 USD $0.934019
Inventory: 259
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Surface Mount YES
Number of Pins 8
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method TR
Technology BICMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS7A8050
Current - Supply (Max) 350μA
Number of Outputs 1
Voltage - Input (Max) 6.5V
Output Type Fixed
Output Configuration Positive
Current - Output 1A
Control Features Enable
Output Voltage 1 5V
Input Voltage (Min) 5.5V
Voltage - Output (Min/Fixed) 5V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq) 120μA
Voltage Dropout (Max) 0.5V @ 1A
PSRR 48dB ~ 38dB (100Hz ~ 1MHz)
Dropout Voltage1-Nom 0.17V
Voltage Tolerance-Max 3%
Input Voltage Absolute-Max 7V
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
Dimensions
Height 1mm
Length 3mm
Width 3mm
Thickness 880μm
Compliance
RoHS Status ROHS3 Compliant
