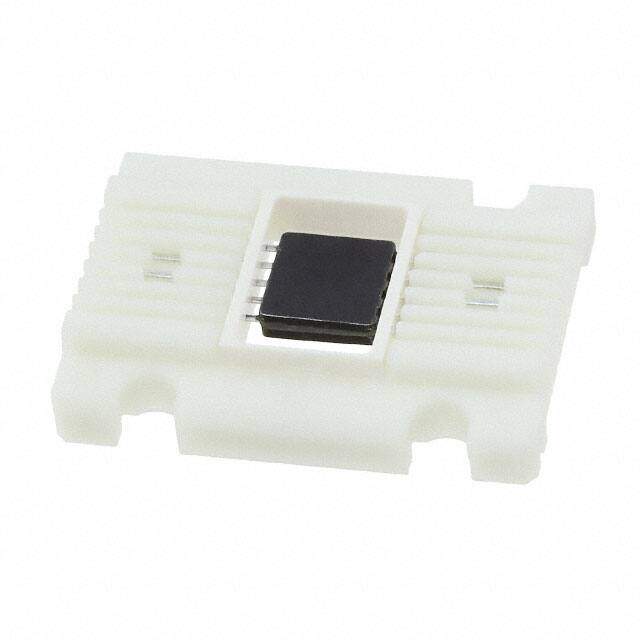

TPS7A4501U/EM
RoHS
/
Package 10-CDFF
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS7A4501 Bulk Surface Mount Over Current Over Temperature Reverse Polarity voltage regulator linear 200mV 2.03mm 750mA 25C
PDF
/
Inventory: 2223
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 1.65mm
Width 6.35mm
Length 6.35mm
Height 2.03mm
Technical
Min Current Limit 1.6A
Dropout Voltage1-Nom 0.27V
Dropout Voltage 200mV
PSRR 68dB (120Hz)
Voltage Dropout (Max) 0.33V @ 750mA
Current - Quiescent (Iq) 1.5mA
Protection Features Over Current, Over Temperature, Reverse Polarity
Min Input Voltage 2.3V
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.21V
Accuracy 1 %
Control Features Enable
Quiescent Current 45mA
Output Configuration Positive
Max Output Current 750mA
Output Type Adjustable
Output Voltage 20V
Number of Outputs 1
Current - Supply (Max) 90mA
Base Part Number TPS7A4501
Number of Functions 1
Terminal Form FLAT
Terminal Position DUAL
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Packaging Bulk
Operating Temperature 25°C
Physical
Number of Pins 10
Package / Case 10-CDFF
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
