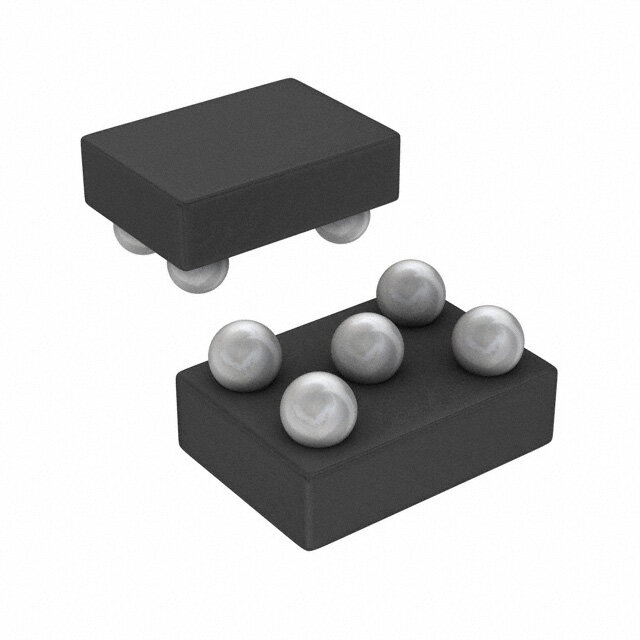

TPS7A1015PYKAR
RoHS
RoHS compliant
RoHS compliantPackage 5-XFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS7A1015 Tape & Reel (TR) Surface Mount Over Current Over Temperature UVLO voltage regulator linear 0.07V 0.4mm 300mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.468853
≥1 USD $0.468853
≥100 USD $0.312569
≥250 USD $0.238731
≥1000 USD $0.156552
Inventory: 118885
Minimum: 1
-
+
Technical Details
Technical
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.35mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS7A1015
JESD-30 Code R-XBGA-B5
Current - Supply (Max) 9μA
Number of Outputs 1
Voltage - Input (Max) 3.3V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA
Control Features Enable
Output Voltage 1 1.5V
Input Voltage (Min) 2V
Voltage - Output (Min/Fixed) 1.5V
Number of Regulators 1
Protection Features Over Current, Over Temperature, UVLO
Current - Quiescent (Iq) 2.6μA
Voltage Dropout (Max) 0.07V @ 300mA
PSRR 60dB ~ 35dB (1kHz ~ 1.5MHz)
Dropout Voltage1-Nom 0.07V
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Dimensions
Height Seated (Max) 0.4mm
Width 0.74mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Surface Mount YES
Package / Case 5-XFBGA, DSBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
