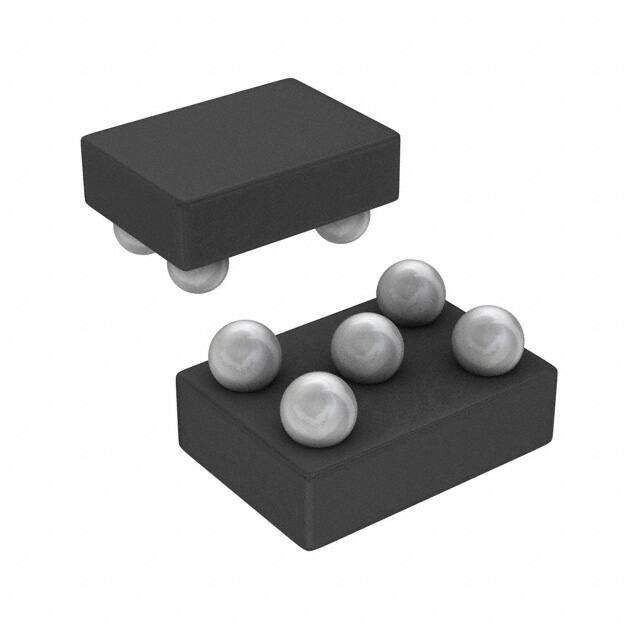

TPS79928YZUR
RoHS
RoHS compliant
RoHS compliantPackage 5-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS799 Tape & Reel (TR) Surface Mount Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) voltage regulator linear 100mV 625mum 200mA 530mW
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 163128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 1.616mm
Length 1.25mm
Height 625μm
Technical
Output Voltage Accuracy 1 %
Min Current Limit 200mA
Voltage Tolerance-Max 2%
Min Output Voltage 2.8V
Dropout Voltage1-Nom 0.1V
Dropout Voltage 100mV
PSRR 70dB ~ 38dB (100Hz ~ 100kHz)
Voltage Dropout (Max) 0.18V @ 200mA
Current - Quiescent (Iq) 60μA
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Min Input Voltage 2.7V
Number of Regulators 1
Output Voltage 1 2.8V
Max Output Voltage 2.8V
Accuracy 2 %
Control Features Enable
Quiescent Current 40μA
Power Dissipation 530mW
Output Configuration Positive
Max Output Current 200mA
Output Type Fixed
Output Voltage 2.8V
Voltage - Input (Max) 6.5V
Number of Outputs 1
Pin Count 5
Base Part Number TPS799
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BICMOS
Max Power Dissipation 530mW
Packing Method TR
Subcategory Other Regulators
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 5
Surface Mount YES
Package / Case 5-UFBGA, DSBGA
Mounting Type Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
