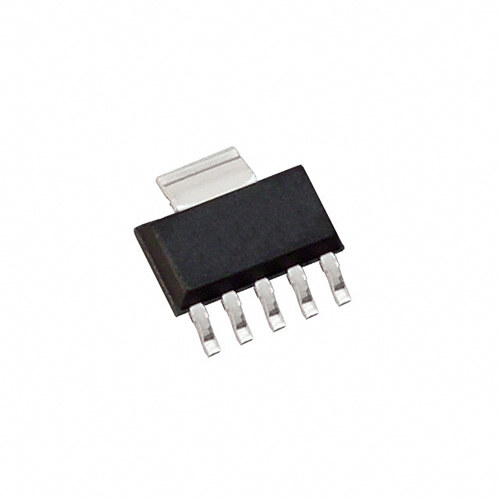

TPS79425DCQG4 image
Favorite
TPS79425DCQG4 image
Favorite

TPS79425DCQG4

Texas Instruments
RoHS
/
Package SOT-223
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description SOT-223 RoHS Compliant Nickel/Palladium/Gold (Ni/Pd/Au) DUAL voltage regulator linear 145mV 3.5mm 250mA 85C
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1146
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 3.5mm

Technical

Voltage Tolerance-Max 3%
Min Output Voltage 2.5V
Dropout Voltage1-Nom 0.1V
Dropout Voltage 145mV
Max Input Voltage 5.5V
Current - Input Bias 170μA
Min Input Voltage 2.7V
Output Voltage 1 2.5V
Voltage - Output 2.5V
Max Output Voltage 2.5V
Accuracy 3 %
Quiescent Current 260μA
Current - Output 250mA
Polarity Positive
Max Output Current 250mA
Output Type Fixed
Number of Outputs 1
Pin Count 6
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Packing Method TUBE
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4

Physical

Number of Pins 6
Surface Mount YES
Package / Case SOT-223
