TPS79330YEQR
RoHS
RoHS compliant

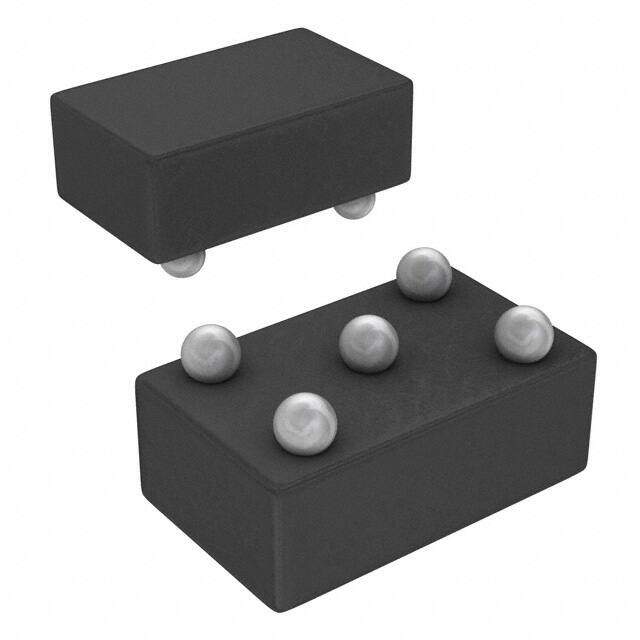

RoHS compliantPackage 5-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Contains Lead Positive BALL Linear Voltage Regulator IC -40C~125C 530mW 200mA 112mV
PDF
/
Buying Options
Total Price: USD $3.21
Unit Price: USD $3.2148
≥1 USD $3.2148
≥10 USD $2.63815
≥100 USD $2.5555
≥500 USD $2.4738
≥1000 USD $2.39115
Inventory: 7509
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 5-UFBGA, DSBGA
Number of Pins 5
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Subcategory Other Regulators
Packing Method TAPE AND REEL
Max Power Dissipation 530mW
Technology BICMOS
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 1
Base Part Number TPS79330
Pin Count 5
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 3V
Output Type Fixed
Max Output Current 200mA
Output Configuration Positive
Quiescent Current 180μA
Control Features Enable
Accuracy 2 %
Output Voltage 1 3V
Number of Regulators 1
Min Input Voltage 2.7V
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq) 220μA
Voltage Dropout (Max) 0.2V @ 200mA
PSRR 70dB ~ 43dB (100Hz ~ 100kHz)
Dropout Voltage 112mV
Dropout Voltage1-Nom 0.112V
Voltage Tolerance-Max 2%
Min Current Limit 285mA
Input Voltage Absolute-Max 6V
Input Bias Current 170μA
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
