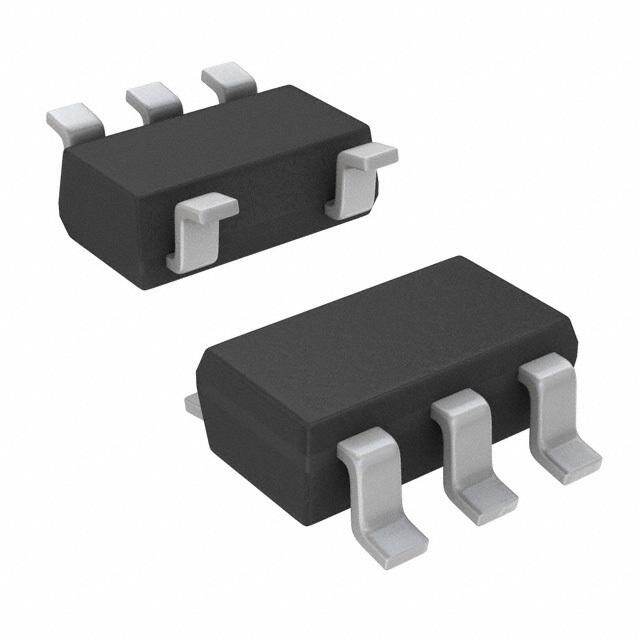

TPS78001DDCTG4 image
Favorite
TPS78001DDCTG4 image
Favorite

TPS78001DDCTG4

Texas Instruments
RoHS
/
Package SOT-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description SOT-5 Surface Mount RoHS Compliant Nickel/Palladium/Gold (Ni/Pd/Au) voltage regulator linear 250mV 870mum 150mA 500mW
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.511626
≥1 USD $2.511626
≥10 USD $2.369463
≥100 USD $2.235341
≥500 USD $2.108806
≥1000 USD $1.989443
Inventory: 1588
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 1.6mm
Length 2.9mm
Height 870μm

Technical

Voltage Reference 1.216V
Line Regulation-Max (%/V) 0.27
Load Regulation-Max(%) 2%
Output Voltage Accuracy 2 %
Min Current Limit 150mA
Dropout Voltage1-Nom 0.2V
Dropout Voltage 250mV
Max Input Voltage 5.5V
Min Input Voltage 2.2V
Voltage - Output 5.25V
Accuracy 2 %
Quiescent Current 500nA
Current - Output 150mA
Power Dissipation 500mW
Power Dissipation-Max 500mW
Polarity Positive
Max Output Current 150mA
Output Type Adjustable
Number of Outputs 1
Pin Count 5
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology PMOS
Packing Method TAPE AND REEL
Power Rating 500mW
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4

Physical

Number of Pins 5
Package / Case SOT-5
Mount Surface Mount
