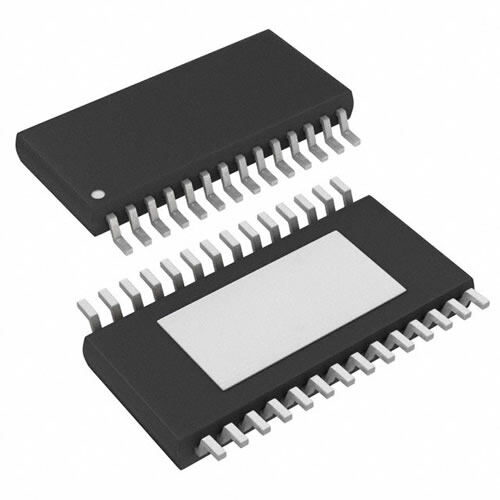

TPS767D325PWPRG4 image
Favorite
TPS767D325PWPRG4 image
Favorite

TPS767D325PWPRG4

Texas Instruments
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Contains Lead Positive GULL WING PMOS Linear Voltage Regulator IC 125C 5.07W 1A 9.7mm
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.0448
≥1 USD $3.0448
Inventory: 269
Minimum: 1
-
+

Technical Details

Physical

Surface Mount YES
Number of Pins 28

Technical

JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology PMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Pin Count 28
Number of Outputs 2
Output Type Fixed
Max Output Current 1A
Polarity Positive
Power Dissipation-Max 5.07W
Current - Output 1A
Quiescent Current 80μA
Accuracy 2 %
Max Output Voltage 3.3V
Voltage - Output 3.3V
Output Voltage 1 2.5V
Min Input Voltage 2.7V
Current - Input Bias 85μA
Max Input Voltage 10V
Dropout Voltage 350mV
Dropout Voltage1-Nom 0.575V
Min Output Voltage 3.3V
Voltage Tolerance-Max 2%
Nominal Output Voltage 3.3V
Output Voltage 2 3.3V

Dimensions

Length 9.7mm
Width 4.4mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Contains Lead
