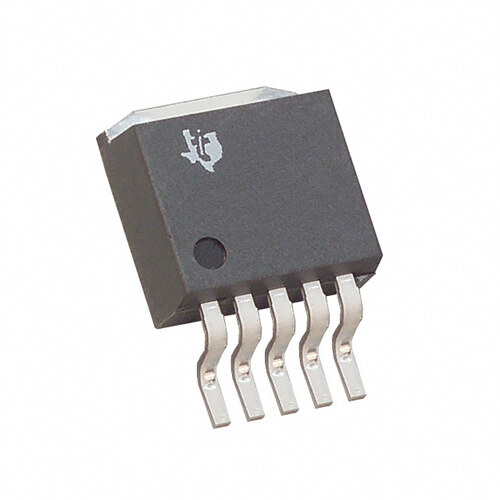

TPS75933KTTRG3
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 3.3V 7.5A DDPAK
PDF
/
Buying Options
Total Price: USD $3.2
Unit Price: USD $3.199488
≥1 USD $3.199488
≥10 USD $3.018384
≥100 USD $2.847535
≥500 USD $2.686354
≥1000 USD $2.534291
Inventory: 1438
Minimum: 1
-
+
Technical Details
Physical
Package / Case TO-263
Surface Mount YES
Number of Pins 5
Technical
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Pin Count 4
Number of Outputs 1
Output Type Fixed
Max Output Current 7.5A
Polarity Positive
Current - Output 7.5A
Quiescent Current 120μA
Accuracy 3 %
Max Output Voltage 3.3V
Voltage - Output 3.3V
Output Voltage 1 3.3V
Min Input Voltage 3.7V
Current - Input Bias 125μA
Max Input Voltage 5.5V
Dropout Voltage 400mV
Dropout Voltage1-Nom 0.4V
Min Output Voltage 3.3V
Voltage Tolerance-Max 3%
Min Current Limit 8A
Line Regulation-Max (%/V) 0.00396%
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
