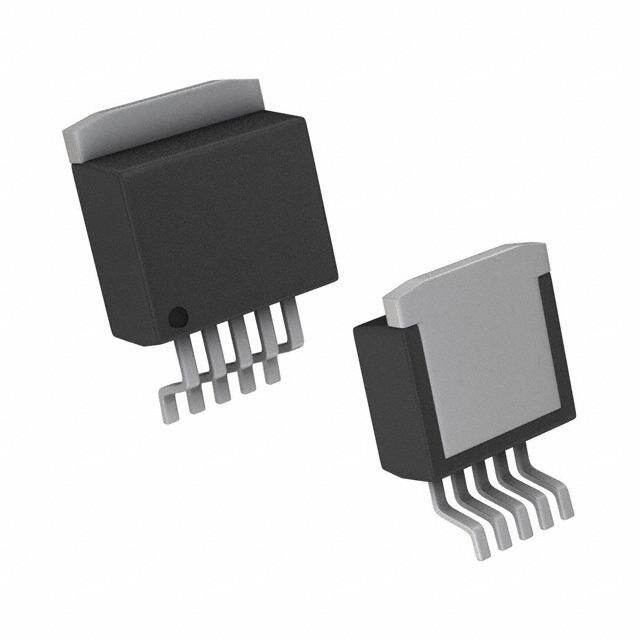

TPS75915KTTRG3 image
Favorite
TPS75915KTTRG3 image
Favorite

TPS75915KTTRG3

Texas Instruments
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description TO-263 RoHS Compliant Matte Tin (Sn) SINGLE voltage regulator linear 400mV 7.5A 125C
PDF
/
Buying Options
Total Price: USD $16.46
Unit Price: USD $16.46255
≥1 USD $16.46255
≥10 USD $13.50805
≥100 USD $13.0853
≥500 USD $12.6635
≥1000 USD $12.2417
Inventory: 1220
Minimum: 1
-
+

Technical Details

Technical

ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Pin Count 4
Number of Outputs 1
Output Type Fixed
Max Output Current 7.5A
Polarity Positive
Current - Output 7.5A
Quiescent Current 120μA
Accuracy 3 %
Max Output Voltage 1.5V
Voltage - Output 1.5V
Output Voltage 1 1.5V
Min Input Voltage 2.8V
Current - Input Bias 125μA
Max Input Voltage 5.5V
Dropout Voltage 400mV
Number of Terminations 5
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e3
Min Current Limit 8A
Voltage Tolerance-Max 3%
Min Output Voltage 1.5V
Dropout Voltage1-Nom 0.4V

Physical

Number of Pins 5
Surface Mount YES
Package / Case TO-263

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
