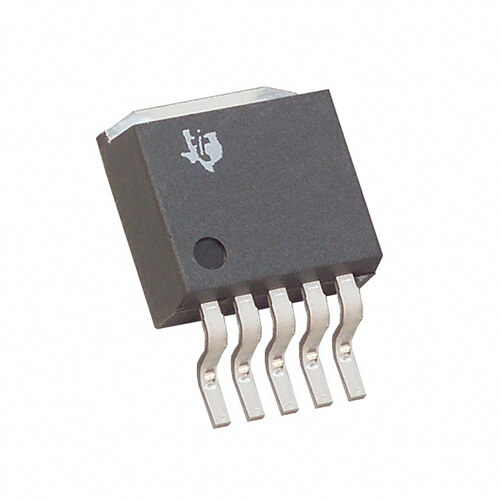

TPS758A01KTTRG3
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO ADJ 3A DDPAK
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0821
≥1 USD $12.0821
≥10 USD $9.91325
≥100 USD $9.60355
≥500 USD $9.29385
≥1000 USD $8.98415
Inventory: 1396
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Voltage Reference 1.24V
Line Regulation-Max (%/V) 0.1
Min Current Limit 5.5A
Min Output Voltage 1.24V
Dropout Voltage 150mV
Max Input Voltage 5.5V
Current - Input Bias 125μA
Min Input Voltage 2.8V
Voltage - Output 5V
Max Output Voltage 5V
Accuracy 3 %
Quiescent Current 120μA
Current - Output 3A
Polarity Positive
Max Output Current 3A
Output Type Adjustable
Number of Outputs 1
Pin Count 4
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Technology PMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e3
Physical
Number of Pins 5
Surface Mount YES
Package / Case TO-263
