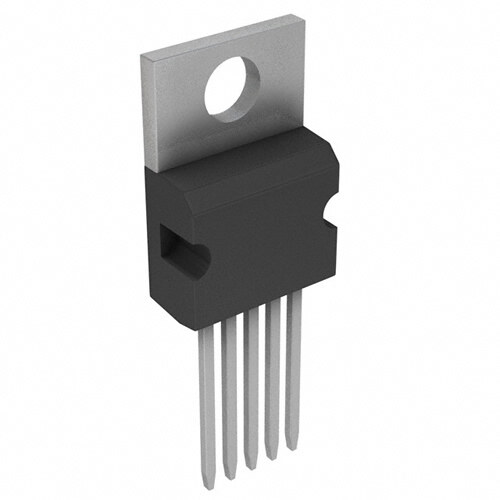

TPS75825KCG3 image
Favorite
TPS75825KCG3 image
Favorite

TPS75825KCG3

Texas Instruments
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 3A TO220-5
PDF
/
Buying Options
Total Price: USD $3.35
Unit Price: USD $3.349062
≥1 USD $3.349062
≥10 USD $3.159492
≥100 USD $2.980659
≥500 USD $2.811941
≥1000 USD $2.652768
Inventory: 4510
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant

Technical

Min Current Limit 5.5A
Voltage Tolerance-Max 3%
Min Output Voltage 2.5V
Dropout Voltage1-Nom 1V
Dropout Voltage 150mV
Max Input Voltage 5.5V
Current - Input Bias 125μA
Min Input Voltage 2.8V
Output Voltage 1 2.5V
Voltage - Output 2.5V
Max Output Voltage 2.5V
Accuracy 3 %
Quiescent Current 120μA
Current - Output 3A
Max Output Current 3A
Output Type Fixed
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Technology CMOS
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Pbfree Code yes
JESD-609 Code e3

Physical

Number of Pins 5
Surface Mount NO
Package / Case TO-220-5
