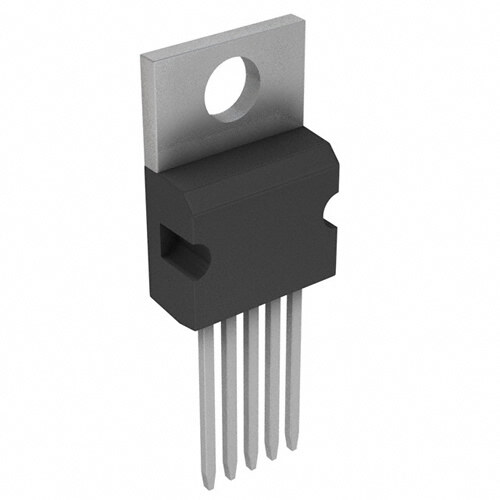

TPS75601KCG3 image
Favorite
TPS75601KCG3 image
Favorite

TPS75601KCG3

Texas Instruments
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Contains Lead Positive THROUGH-HOLE PMOS voltage regulator linear 125C 5A 250mV
PDF
/
Inventory: 8790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Line Regulation-Max (%/V) 0.1
Min Current Limit 5.5A
Min Output Voltage 1.22V
Dropout Voltage 250mV
Max Input Voltage 5.5V
Current - Input Bias 125μA
Min Input Voltage 2.8V
Voltage - Output 5V
Max Output Voltage 5V
Accuracy 3 %
Quiescent Current 120μA
Current - Output 5A
Polarity Positive
Max Output Current 5A
Output Type Adjustable
Number of Outputs 1
Pin Count 3
Number of Functions 1
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Technology PMOS
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Pbfree Code yes
JESD-609 Code e3

Physical

Number of Pins 5
Surface Mount NO
Package / Case TO-220-5
