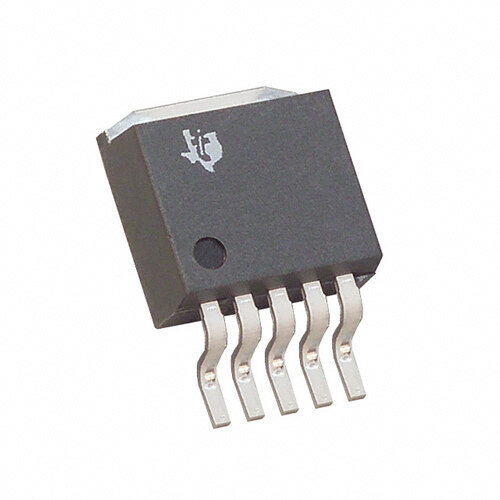

TPS75525KTTRG3
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 2.5V 5A DDPAK
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.522074
≥1 USD $3.522074
≥10 USD $3.322716
≥100 USD $3.134636
≥500 USD $2.957207
≥1000 USD $2.789821
Inventory: 1399
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Input Voltage Absolute-Max 6V
Min Current Limit 5.5A
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 0.3V
Dropout Voltage 500mV
Max Input Voltage 5.5V
Current - Input Bias 125μA
Min Input Voltage 2.8V
Output Voltage 1 2.5V
Voltage - Output 2.5V
Accuracy 3 %
Quiescent Current 200μA
Current - Output 5A
Polarity Positive
Max Output Current 5A
Output Type Fixed
Number of Outputs 1
Pin Count 4
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Technology PMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e3
Physical
Number of Pins 5
Package / Case TO-263
Mount Surface Mount
