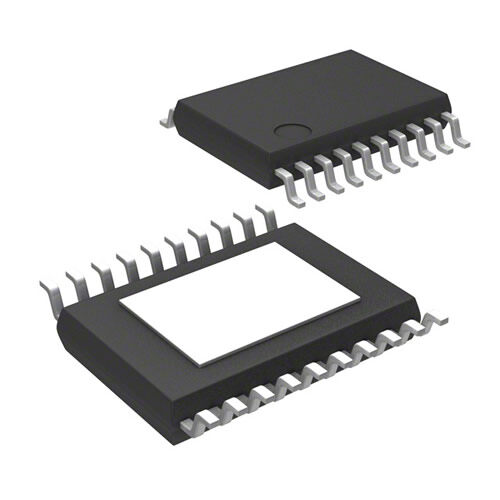

TPS75318QPWPG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 1.8V 1.5A 20HTSSOP
PDF
/
Buying Options
Total Price: USD $2.45
Unit Price: USD $2.450145
≥1 USD $2.450145
≥10 USD $2.311456
≥100 USD $2.180615
≥500 USD $2.057188
≥1000 USD $1.940741
Inventory: 1213
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 4.4mm
Length 6.5mm
Technical
Line Regulation-Max (%/V) 0.00504%
Output Voltage Accuracy 2 %
Voltage Tolerance-Max 2%
Min Output Voltage 1.8V
Dropout Voltage1-Nom 0.9V
Dropout Voltage 160mV
Max Input Voltage 5.5V
Current - Input Bias 75μA
Min Input Voltage 2.7V
Output Voltage 1 1.8V
Voltage - Output 1.8V
Max Output Voltage 1.8V
Accuracy 2 %
Quiescent Current 70μA
Current - Output 1.5A
Power Dissipation 7.2W
Power Dissipation-Max 7.2W
Polarity Positive
Max Output Current 1.5A
Output Type Fixed
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology PMOS
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Number of Pins 20
Surface Mount YES
Package / Case HTSSOP EP
