TPS74001DPTR
RoHS
RoHS compliant

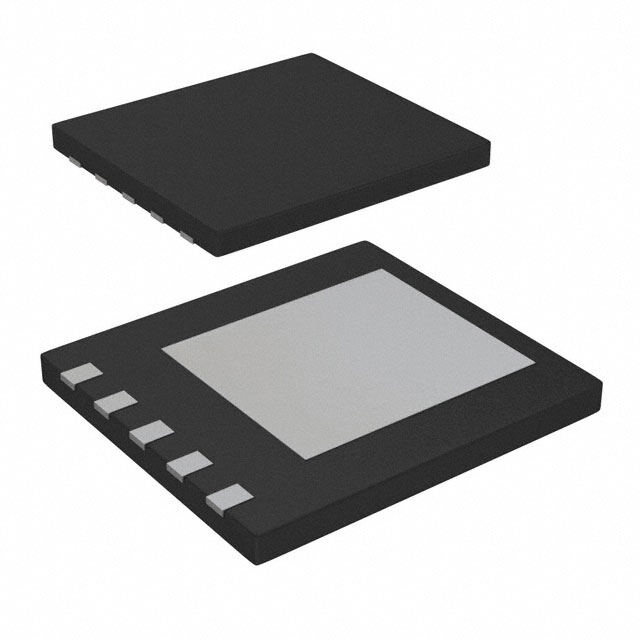

RoHS compliantPackage 5-VSFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TPS74001 Cut Tape (CT) Surface Mount Over Current Over Temperature Under Voltage Lockout (UVLO) voltage regulator linear 100mV 1.5A -40C~125C
PDF
/
Buying Options
Total Price: USD $5.36
Unit Price: USD $5.36465
≥1 USD $5.36465
≥10 USD $4.40135
≥100 USD $4.26455
≥500 USD $4.1268
≥1000 USD $3.98905
Inventory: 1560
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 5-VSFN Exposed Pad
Number of Pins 5
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
JESD-609 Code e4
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position SINGLE
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Base Part Number TPS74001
Pin Count 5
Number of Outputs 1
Voltage - Input (Max) 6V
Output Voltage 3.6V
Output Type Adjustable
Max Output Current 1.5A
Output Configuration Positive
Quiescent Current 2mA
Control Features Enable
Accuracy 1 %
Voltage - Output (Min/Fixed) 0.9V
Number of Regulators 1
Min Input Voltage 1.2V
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq) 3mA
Voltage Dropout (Max) 0.3V @ 1.5A
Dropout Voltage 100mV
Dropout Voltage1-Nom 0.1V
Min Current Limit 1.6A
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
