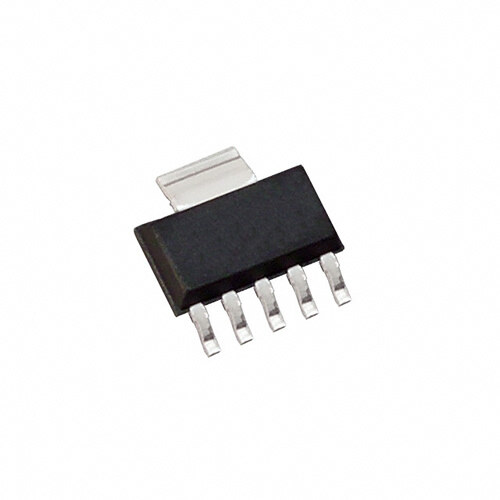

TPS73630DCQRG4
RoHS
/
Package SOT-223-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 3V 0.4A SOT223-6
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.43545
≥1 USD $1.43545
≥10 USD $1.178
≥100 USD $1.14095
≥500 USD $1.10485
≥1000 USD $1.0678
Inventory: 1600
Minimum: 1
-
+
Technical Details
Physical
Package / Case SOT-223-6
Surface Mount YES
Number of Pins 6
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 6
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Pin Count 6
Number of Outputs 1
Output Type Fixed
Max Output Current 400mA
Polarity Positive
Power Dissipation-Max 2.22W
Current - Output 400mA
Quiescent Current 300μA
Accuracy 1 %
Max Output Voltage 3V
Voltage - Output 3V
Output Voltage 1 3V
Min Input Voltage 1.7V
Current - Input Bias 300μA
Max Input Voltage 5.5V
Dropout Voltage 75mV
Dropout Voltage1-Nom 0.075V
Min Output Voltage 3V
Voltage Tolerance-Max 1%
Min Current Limit 400mA
Dimensions
Width 3.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
