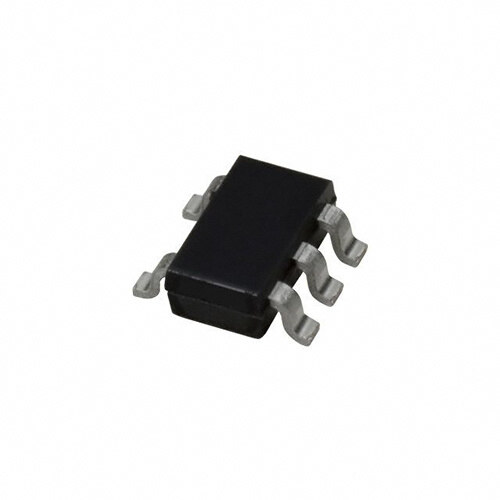

TPS73131DBVRG4 image
Favorite
TPS73131DBVRG4 image
Favorite

TPS73131DBVRG4

Texas Instruments
RoHS
/
Package SOT-23-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.1V 0.15A SOT23-5
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 1134
Minimum: 1
-
+

Technical Details

Physical

Package / Case SOT-23-5
Surface Mount YES
Number of Pins 5

Technical

Packaging Tape and Reel
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Pin Count 5
Number of Outputs 1
Output Type Fixed
Max Output Current 150mA
Polarity Positive
Power Dissipation-Max 560mW
Power Dissipation 560mW
Current - Output 150mA
Quiescent Current 400μA
Accuracy 1 %
Max Output Voltage 3.1V
Voltage - Output 3.1V
Output Voltage 1 3.1V
Min Input Voltage 1.7V
Current - Input Bias 400μA
Max Input Voltage 5.5V
Dropout Voltage 30mV
Dropout Voltage1-Nom 0.03V
Min Output Voltage 3.1V
Voltage Tolerance-Max 1%
Min Current Limit 150mA
Output Voltage Accuracy 0.5 %

Dimensions

Length 2.9mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
