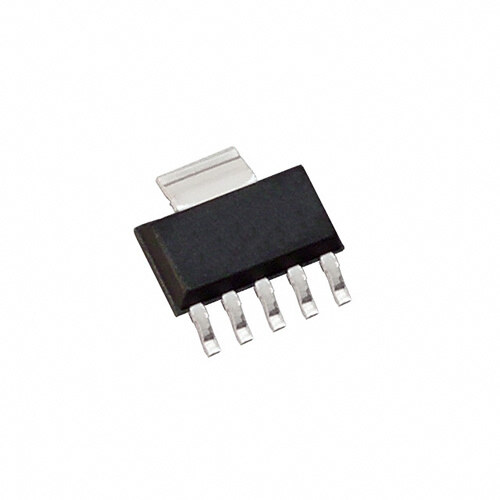

TPS72615DCQRG4
RoHS
/
Package SOT-223-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 1.5V 1A SOT223-6
PDF
/
Buying Options
Total Price: USD $3.28
Unit Price: USD $3.2832
≥1 USD $3.2832
≥10 USD $2.6942
≥100 USD $2.60965
≥500 USD $2.52605
≥1000 USD $2.4415
Inventory: 10939
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3.5mm
Technical
Voltage Reference 1.22V
Min Current Limit 1.1A
Voltage Tolerance-Max 2%
Min Output Voltage 1.5V
Dropout Voltage 310mV
Max Input Voltage 6V
Current - Input Bias 75μA
Min Input Voltage 1.8V
Output Voltage 1 1.5V
Voltage - Output 1.5V
Max Output Voltage 1.5V
Accuracy 2 %
Quiescent Current 70μA
Current - Output 1A
Polarity Positive
Max Output Current 1A
Output Type Fixed
Number of Outputs 1
Pin Count 6
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 6
Surface Mount YES
Package / Case SOT-223-6
