TPS71818-27YZCT
RoHS
RoHS compliant

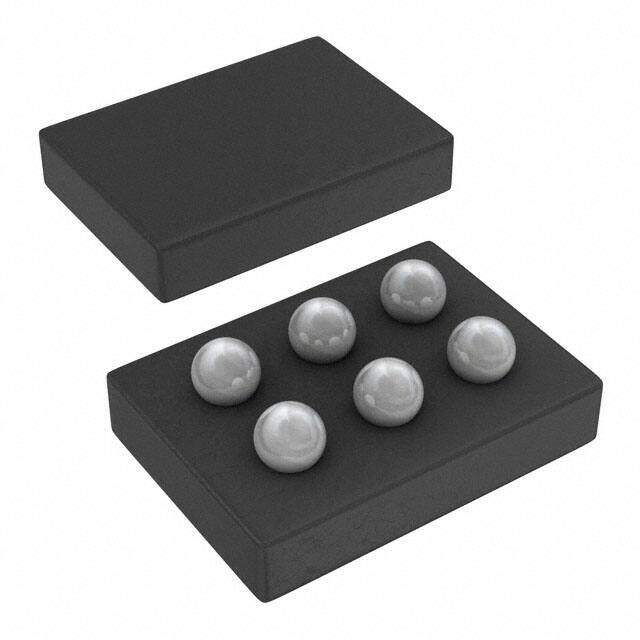

RoHS compliantPackage 6-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Lead Free Positive BALL Linear Voltage Regulator IC -40C~125C 530mW 200mA 1.795mm
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
Inventory: 36264
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 1.795mm
Technical
Output Voltage 2 2.7V
Input Bias Current 90μA
Input Voltage Absolute-Max 7V
Min Current Limit 240mA
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 0.23V
Dropout Voltage 230mV
PSRR 63dB ~ 44dB (100Hz ~ 1MHz)
Current - Quiescent (Iq) 160μA
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Min Input Voltage 2.7V
Number of Regulators 2
Voltage - Output (Min/Fixed) 1.8V 2.7V
Output Voltage 1 1.8V
Accuracy 2.5 %
Control Features Enable
Quiescent Current 90μA
Current - Output 200mA
Output Configuration Positive
Output Type Fixed
Output Voltage 2.7V
Voltage - Input (Max) 6.5V
Number of Outputs 2
Current - Supply (Max) 250μA
Pin Count 6
Base Part Number TPS71818
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BICMOS
Max Power Dissipation 530mW
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 6
Package / Case 6-UFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
