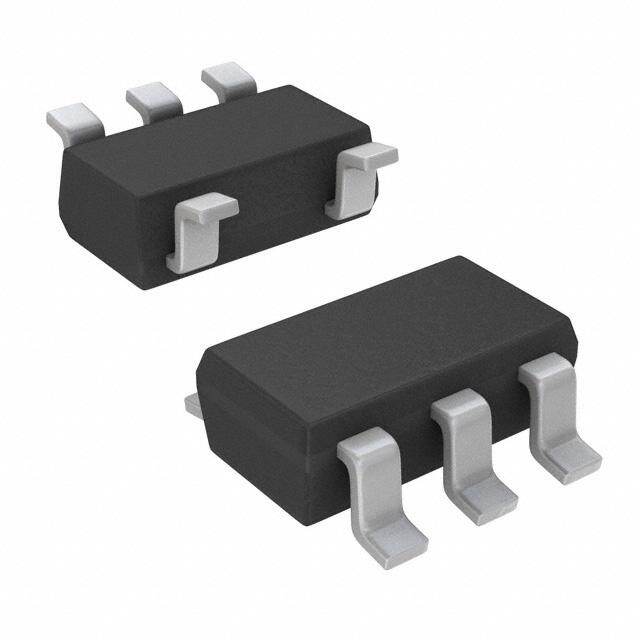

TPS71710DCKRG4 image
Favorite
TPS71710DCKRG4 image
Favorite

TPS71710DCKRG4

Texas Instruments
RoHS
/
Package SC
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1V 150MA SC70-5
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.147
≥1 USD $2.147
≥10 USD $1.76225
≥100 USD $1.70715
≥500 USD $1.65205
≥1000 USD $1.59695
Inventory: 1184
Minimum: 1
-
+

Technical Details

Physical

Package / Case SC
Surface Mount YES
Number of Pins 5

Technical

Packaging Tape and Reel
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Pin Count 5
Number of Outputs 1
Output Type Fixed
Max Output Current 150mA
Polarity Positive
Power Dissipation-Max 320mW
Power Dissipation 320mW
Current - Output 150mA
Quiescent Current 50μA
Accuracy 3 %
Max Output Voltage 1V
Voltage - Output 1V
Output Voltage 1 1V
Min Input Voltage 2.5V
Current - Input Bias 50μA
Max Input Voltage 6.5V
Dropout Voltage 170mV
Dropout Voltage1-Nom 0.17V
Min Output Voltage 1V
Voltage Tolerance-Max 3%
Min Current Limit 200mA
Output Voltage Accuracy 3 %

Dimensions

Length 2mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
