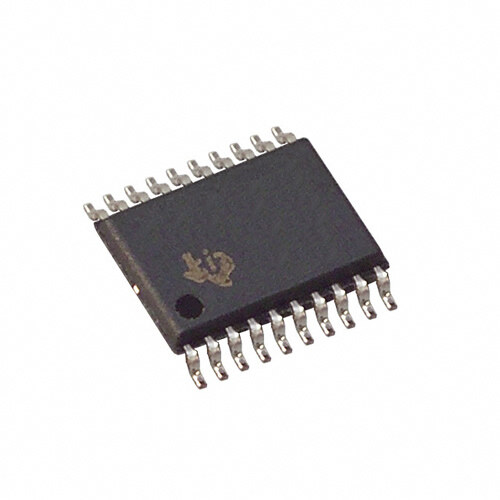

TPS71025PWRG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 2.5V 0.5A 20TSSOP
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.75535
≥1 USD $3.75535
≥10 USD $3.0818
≥100 USD $2.9849
≥500 USD $2.88895
≥1000 USD $2.793
Inventory: 1102
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.4mm
Length 6.5mm
Technical
Line Regulation-Max (%/V) 0.029%
Output Voltage Accuracy 2 %
Voltage Tolerance-Max 2%
Min Output Voltage 2.5V
Dropout Voltage1-Nom 0.5V
Dropout Voltage 330mV
Max Input Voltage 10V
Current - Input Bias 292μA
Min Input Voltage 2.97V
Output Voltage 1 2.5V
Voltage - Output 2.5V
Max Output Voltage 2.5V
Accuracy 2 %
Quiescent Current 280μA
Current - Output 500mA
Power Dissipation 700mW
Power Dissipation-Max 700mW
Polarity Positive
Max Output Current 500mA
Output Type Fixed
Number of Outputs 1
Pin Count 20
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology PMOS
Packing Method TAPE&REEL (LEFT)
Subcategory Other Regulators
Min Operating Temperature 0°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Packaging Tape and Reel
Physical
Number of Pins 20
Surface Mount YES
Package / Case TSSOP
