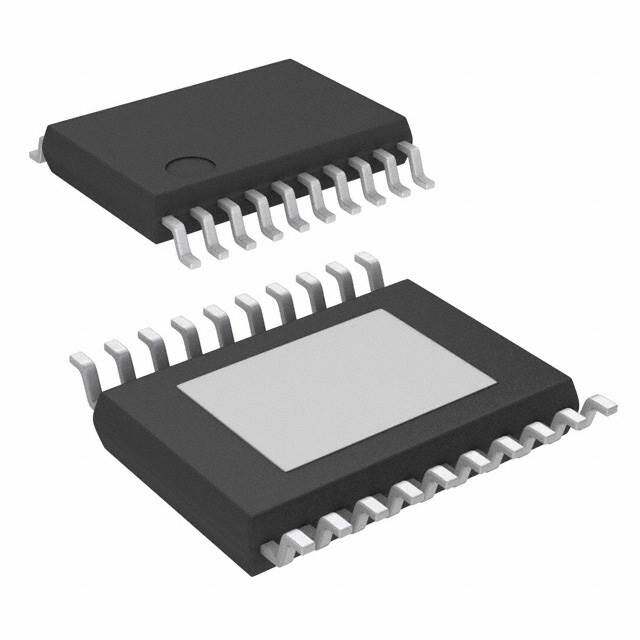

TPS70751PWPRG4 image
Favorite
TPS70751PWPRG4 image
Favorite

TPS70751PWPRG4

Texas Instruments
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description AUTOMOTIVE RoHS Compliant Nickel/Palladium/Gold (Ni/Pd/Au) DUAL voltage regulator linear 83mV 6.5mm 200mA 4.115W
PDF
/
Buying Options
Total Price: USD $10.73
Unit Price: USD $10.726944
≥1 USD $10.726944
≥10 USD $10.119754
≥100 USD $9.546939
≥500 USD $9.006556
≥1000 USD $8.496742
Inventory: 2211
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 4.4mm
Length 6.5mm

Technical

Min Output Voltage 3.3V
Dropout Voltage 83mV
Max Input Voltage 6V
Current - Input Bias 190μA
Min Input Voltage 2.7V
Voltage - Output 1.8V
Max Output Voltage 3.3V
Accuracy 2 %
Quiescent Current 190μA
Adjustable Threshold NO
Current - Output 250mA
Power Dissipation-Max 4.115W
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Number of Channels 2
Temperature Grade AUTOMOTIVE
Supply Voltage-Max (Vsup) 6V
Polarity Positive
Max Output Current 200mA
Output Type Fixed
Number of Outputs 2
Pin Count 20
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature MANUAL RESET INPUT; POWER ON RESET GENERATOR
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4

Physical

Number of Pins 20
Surface Mount YES
