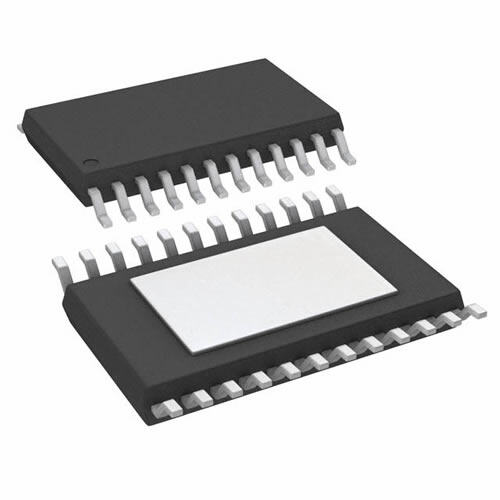

TPS70345PWPRG4
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 3.3V/1.2V 24HTSSOP
PDF
/
Buying Options
Total Price: USD $3.54
Unit Price: USD $3.53759
≥1 USD $3.53759
≥10 USD $3.33735
≥100 USD $3.14844
≥500 USD $2.97023
≥1000 USD $2.8021
≥3000 USD $2.64349
Inventory: 9005
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.4mm
Length 7.8mm
Technical
Line Regulation-Max (%/V) 0.0039%
Output Voltage 2 1.2V
Voltage Tolerance-Max 2%
Min Output Voltage 3.3V
Dropout Voltage1-Nom 0.16V
Dropout Voltage 160mV
Max Input Voltage 6V
Current - Input Bias 185μA
Min Input Voltage 2.7V
Output Voltage 1 3.3V
Voltage - Output 1.2V
Max Output Voltage 3.3V
Accuracy 2 %
Quiescent Current 180μA
Current - Output 2A
Power Dissipation-Max 4.115W
Polarity Positive
Max Output Current 1A
Output Type Fixed
Number of Outputs 2
Pin Count 24
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology PMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 24
Surface Mount YES
