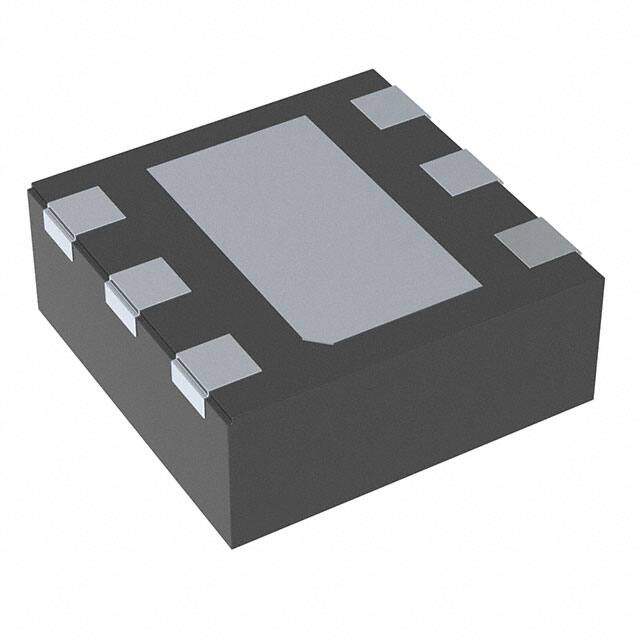

TLV76708DRVT image
Favorite
TLV76708DRVT image
Favorite

TLV76708DRVT

Texas Instruments
RoHS
RoHS RoHS compliant
Package 6-WDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description TLV76708 Tape & Reel (TR) Surface Mount Over Current Over Temperature UVLO voltage regulator linear 0.9V 2mm 1A -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.82896
≥100 USD $0.786368
≥500 USD $0.646008
Inventory: 740
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mounting Type Surface Mount
Package / Case 6-WDFN Exposed Pad
Surface Mount YES

Technical

Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2
Number of Terminations 6
Technology BIPOLAR
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.65mm
Reach Compliance Code compliant
Base Part Number TLV76708
JESD-30 Code S-PDSO-N6
Current - Supply (Max) 1.5mA
Number of Outputs 1
Voltage - Input (Max) 16V
Output Type Fixed
Output Configuration Positive
Current - Output 1A
Control Features Enable
Output Voltage 1 0.8V
Input Voltage (Min) 2.5V
Voltage - Output (Min/Fixed) 0.8V
Number of Regulators 1
Protection Features Over Current, Over Temperature, UVLO
Current - Quiescent (Iq) 80μA
Voltage Dropout (Max) 0.9V @ 1A
PSRR 70dB (120Hz)
Dropout Voltage1-Nom 0.9V

Dimensions

Height Seated (Max) 0.8mm
Length 2mm
Width 2mm

Compliance

RoHS Status RoHS Compliant
