TLV7162828PDPQT
RoHS
RoHS compliant

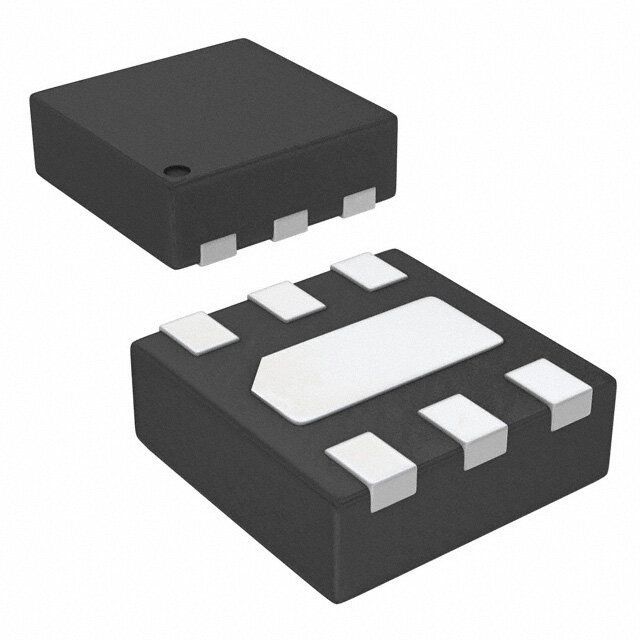

RoHS compliantPackage 6-XFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TLV7162828 Tape & Reel (TR) Surface Mount Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO) voltage regulator linear 230mV 400mum 150mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.78408
≥100 USD $0.744128
≥500 USD $0.611248
Inventory: 1210
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 370μm
Width 1.2mm
Length 1.2mm
Height 400μm
Technical
Output Voltage 2 2.8V
Input Voltage Absolute-Max 6V
Min Current Limit 160mA
Voltage Tolerance-Max 1.5%
Dropout Voltage1-Nom 0.21V
Dropout Voltage 230mV
PSRR 80dB ~ 46dB (100Hz ~ 10kHz)
Voltage Dropout (Max) 0.45V @ 150mA 0.45V @ 150mA
Current - Quiescent (Iq) 75μA
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Min Input Voltage 1.4V
Number of Regulators 2
Output Voltage 1 2.8V
Accuracy 1 %
Control Features Enable
Quiescent Current 50μA
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Output Voltage 2.8V
Voltage - Input (Max) 5.5V
Number of Outputs 2
Base Part Number TLV7162828
Terminal Pitch 0.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology CMOS
Packing Method TR
Subcategory Other Regulators
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 6
Package / Case 6-XFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
