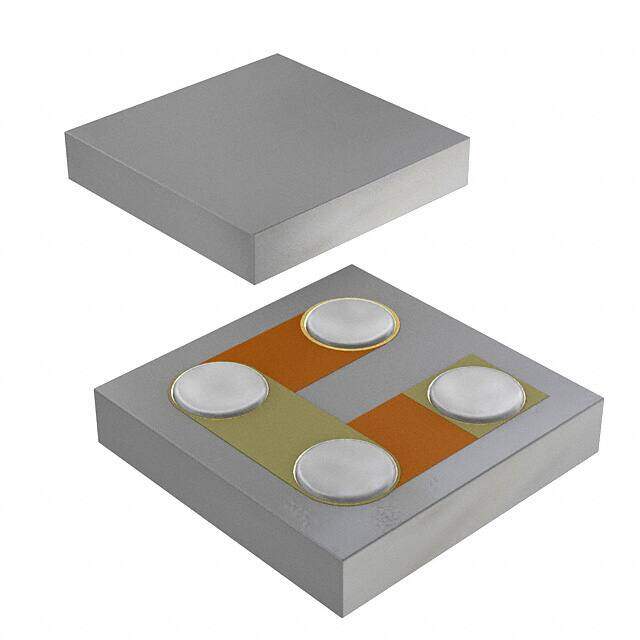

TLV70530YFMR
RoHS
RoHS compliant
RoHS compliantPackage 4-XFLGA, DSLGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TLV70530 Tape & Reel (TR) Surface Mount Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) voltage regulator linear 145mV 150mum 200mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.44
≥100 USD $0.410784
≥500 USD $0.328504
≥1000 USD $0.305043
≥3000 USD $0.258104
Inventory: 1226
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-XFLGA, DSLGA
Number of Pins 4
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Position BOTTOM
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TLV70530
Pin Count 4
Current - Supply (Max) 315μA
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 3V
Output Type Fixed
Output Configuration Positive
Current - Output 200mA
Quiescent Current 30μA
Control Features Enable
Output Voltage 1 3V
Input Voltage (Min) 3.5V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq) 55μA
Voltage Dropout (Max) 0.25V @ 200mA
PSRR 80dB ~ 55dB (10kHz ~ 1MHz)
Dropout Voltage 145mV
Dropout Voltage1-Nom 0.145V
Min Current Limit 260mA
Dimensions
Height 150μm
Length 770μm
Width 770μm
Thickness 145μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
