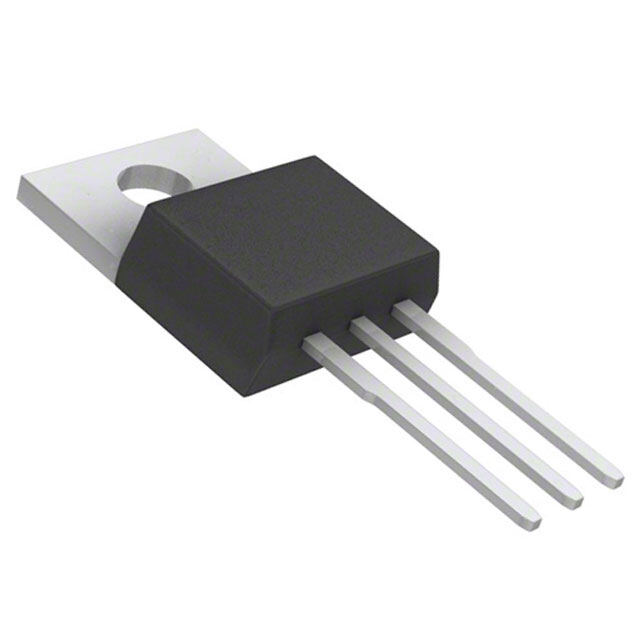

TLV1117CKCT

Texas Instruments
RoHS
RoHS RoHS compliant
Package TO-220-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description TLV1117 Tube Through Hole Over Current Over Temperature voltage regulator linear 1.2V 4.65mm 800mA 0C~125C
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.62216
≥100 USD $0.584144
≥500 USD $0.476696
≥1000 USD $0.442816
≥3000 USD $0.376851
Inventory: 138
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 26 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3
Number of Pins 3

Technical

Operating Temperature 0°C~125°C
Packaging Tube
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Base Part Number TLV1117
Number of Outputs 1
Voltage - Input (Max) 15V
Output Voltage 13.7V
Output Type Adjustable
Max Output Current 800mA
Output Configuration Positive
Quiescent Current 10mA
Accuracy 2.5 %
Max Output Voltage 13.7V
Number of Regulators 1
Min Input Voltage 2.7V
Protection Features Over Current, Over Temperature
Voltage Dropout (Max) 1.3V @ 800mA
PSRR 75dB (120Hz)
Reference Voltage 1.25V
Dropout Voltage 1.2V
Dropout Voltage1-Nom 1.2V
Min Output Voltage 1.25V
Power Supply Rejection Ratio (PSRR) 75dB
Min Current Limit 800mA
Load Regulation-Max(%) 0.4%

Dimensions

Height 4.65mm
Length 10.16mm
Width 8.59mm
Thickness 4.45mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
