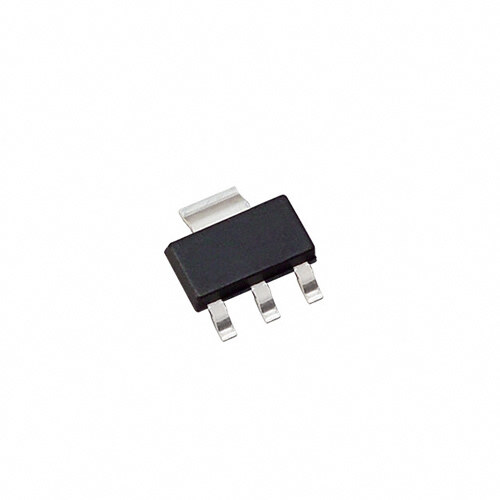

REG1117A-1.8/2K5G4
RoHS
/
Package SOT-223
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape and Reel RoHS Compliant Nickel/Palladium/Gold (Ni/Pd/Au) DUAL voltage regulator linear 1.2V 6.5mm 1A 125C
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.9747
≥1 USD $0.9747
≥10 USD $0.7999
≥100 USD $0.7752
≥500 USD $0.7505
≥1000 USD $0.72485
Inventory: 46431
Minimum: 1
-
+
Technical Details
Physical
Package / Case SOT-223
Surface Mount YES
Number of Pins 4
Technical
Packaging Tape and Reel
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.3mm
Pin Count 4
Number of Outputs 1
Output Type Fixed
Max Output Current 1A
Polarity Positive
Current - Output 1A
Quiescent Current 4mA
Accuracy 1 %
Max Output Voltage 1.8V
Voltage - Output 1.8V
Output Voltage 1 1.8V
Min Input Voltage 3.8V
Current - Input Bias 4mA
Max Input Voltage 15V
Dropout Voltage 1.2V
Dropout Voltage1-Nom 1.2V
Min Output Voltage 1.8V
Voltage Tolerance-Max 2%
Output Voltage Accuracy 1 %
Line Regulation-Max (%/V) 0.007%
Dimensions
Length 6.5mm
Width 3.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
