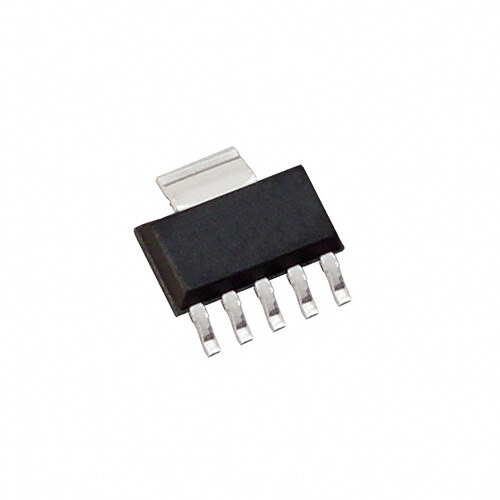

REG103GA-2.7G4
RoHS
/
Package SOT-223-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LDO 2.7V 0.5A SOT223-6
PDF
/
Buying Options
Total Price: USD $4.26
Unit Price: USD $4.259142
≥1 USD $4.259142
≥10 USD $4.018063
≥100 USD $3.790627
≥500 USD $3.576055
≥1000 USD $3.373644
Inventory: 1630
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3.5mm
Technical
Voltage Reference 1.295V
Line Regulation-Max (%/V) 0.0945%
Load Regulation-Max(%) 0.0945%
Min Current Limit 550mA
Voltage Tolerance-Max 2.8%
Dropout Voltage1-Nom 0.115V
Dropout Voltage 115mV
Max Input Voltage 15V
Min Input Voltage 2.1V
Output Voltage 1 2.7V
Voltage - Output 2.7V
Accuracy 2 %
Current - Output 500mA
Polarity Positive
Max Output Current 500mA
Output Type Fixed
Number of Outputs 1
Pin Count 6
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology NMOS
Packing Method RAIL
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 6
Package / Case SOT-223-6
Mount Surface Mount
