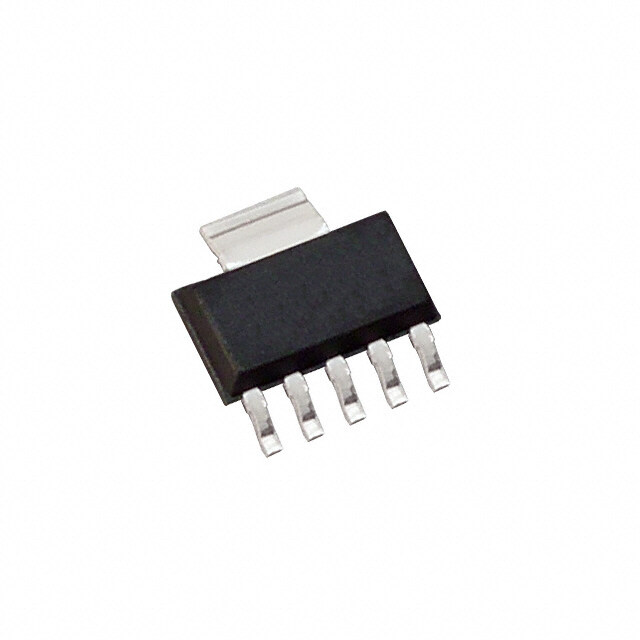

REG102GA-5G4
RoHS
/
Package SOT-223
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
IC REG LINEAR 5V 250MA SOT223-6
PDF
/
Buying Options
Total Price: USD $2.92
Unit Price: USD $2.921702
≥1 USD $2.921702
≥10 USD $2.756325
≥100 USD $2.600309
≥500 USD $2.453122
≥1000 USD $2.314267
Inventory: 957
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3.5mm
Length 6.5mm
Height 1.6mm
Technical
Voltage Reference 1.26V
Output Voltage Accuracy 1.5 %
Min Current Limit 340mA
Voltage Tolerance-Max 2.3%
Min Output Voltage 5V
Dropout Voltage1-Nom 0.15V
Dropout Voltage 150mV
Max Input Voltage 12V
Min Input Voltage 1.8V
Output Voltage 1 5V
Voltage - Output 5V
Max Output Voltage 5V
Accuracy 1.5 %
Quiescent Current 400μA
Current - Output 250mA
Polarity Positive
Max Output Current 250mA
Output Type Fixed
Number of Outputs 1
Pin Count 6
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology NMOS
Packing Method TUBE
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Physical
Number of Pins 6
Surface Mount YES
Package / Case SOT-223
