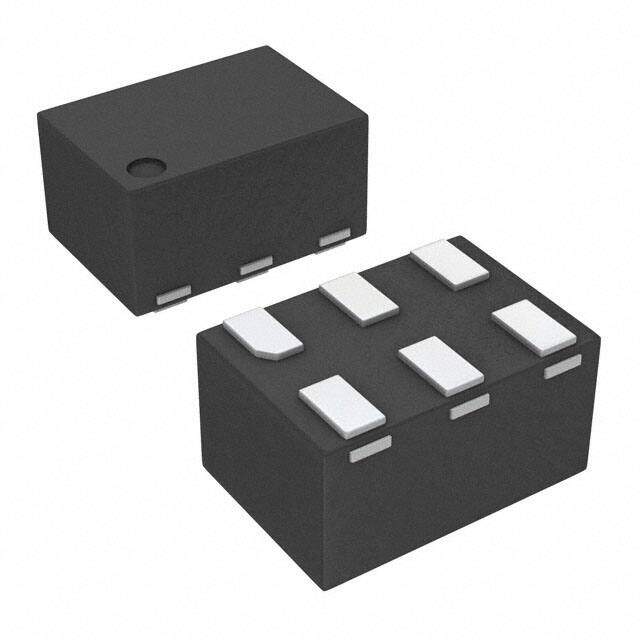

LP5952LC-1.3/NOPB image
Favorite
LP5952LC-1.3/NOPB image
Favorite

LP5952LC-1.3/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 6-UFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description LP5952 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO) voltage regulator linear 128mV 600mum 350mA -40C~85C
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
Inventory: 1140
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Thickness 600μm
Width 2mm
Length 2mm
Height 600μm

Technical

Input Voltage Absolute-Max 6V
Voltage Tolerance-Max 2%
Dropout Voltage1-Nom 88.128V
Dropout Voltage 128mV
PSRR 80dB ~ 64dB (10Hz ~ 100kHz)
Voltage Dropout (Max) 0.25V @ 350mA
Current - Quiescent (Iq) 28μA
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Min Input Voltage 700mV
Number of Regulators 1
Output Voltage 1 1.3V
Accuracy 1.5 %
Control Features Enable
Quiescent Current 28μA
Output Configuration Positive
Max Output Current 350mA
Output Type Fixed
Output Voltage 1.3V
Voltage - Input (Max) 4.5V
Number of Outputs 1
Current - Supply (Max) 100μA
Pin Count 6
Base Part Number LP5952
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology CMOS
Packing Method TR
Subcategory Other Regulators
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 6
Package / Case 6-UFDFN
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
