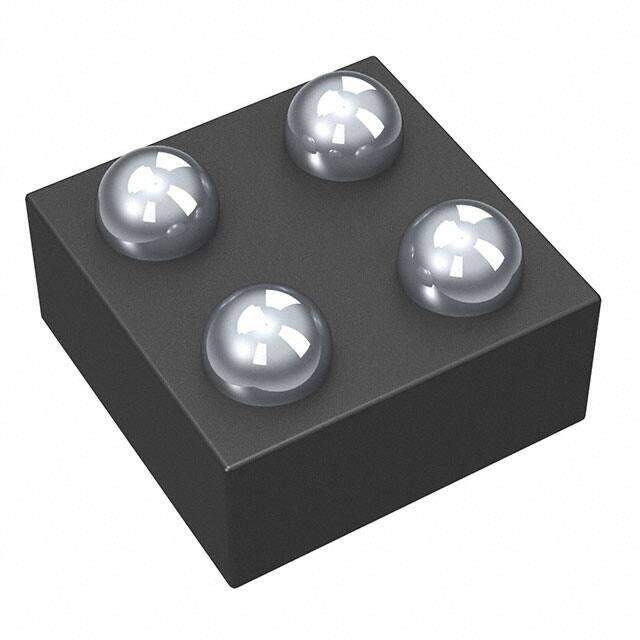

LP5907YKGR-2.85
RoHS
RoHS compliant
RoHS compliantPackage 4-XFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LP5907 Tape & Reel (TR) Surface Mount Over Temperature Short Circuit voltage regulator linear 2.907V 0.645mm 425muA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.518381
≥1 USD $0.518381
≥10 USD $0.489037
≥100 USD $0.461362
≥500 USD $0.435244
≥1000 USD $0.410606
Inventory: 1229
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-XFBGA, DSBGA
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 1
Terminal Pitch 0.35mm
Base Part Number LP5907
JESD-30 Code S-PBGA-B4
Current - Supply (Max) 425μA
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Type Fixed
Output Configuration Positive
Current - Output 250mA
Control Features Enable
Output Voltage 1 2.85V
Input Voltage (Min) 3.85V
Voltage - Output (Min/Fixed) 2.85V
Number of Regulators 1
Protection Features Over Temperature, Short Circuit
Current - Quiescent (Iq) 25μA
Voltage Dropout (Max) 0.12V @ 250mA
PSRR 90dB ~ 60dB (100Hz ~ 100kHz)
Dropout Voltage1-Nom 0.05V
Output Voltage1-Max 2.907V
Output Voltage1-Min 2.793V
Dimensions
Height Seated (Max) 0.33mm
Length 0.645mm
Width 0.645mm
Compliance
RoHS Status ROHS3 Compliant
