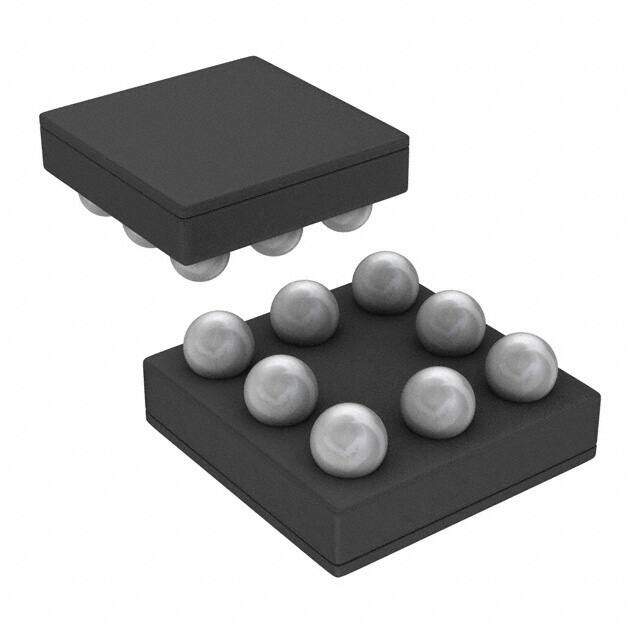

LP3986TL-3131/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 8-WFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description LP3986 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 60mV 1.56mm 150mA 250mW
PDF
/
Inventory: 7748
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WFBGA, DSBGA
Number of Pins 8

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Other Regulators
Packing Method TAPE AND REEL
Max Power Dissipation 250mW
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number LP3986
Pin Count 8
Current - Supply (Max) 320μA
Number of Outputs 2
Voltage - Input (Max) 6V
Output Voltage 3.1V
Output Type Fixed
Output Configuration Positive
Current - Output 150mA
Quiescent Current 130μA
Control Features Enable
Accuracy 2.5 %
Output Voltage 1 3.1V
Voltage - Output (Min/Fixed) 3.1V
Min Input Voltage 2.7V
Protection Features Over Current, Over Temperature, Short Circuit
Voltage Dropout (Max) 0.1V @ 150mA
PSRR 60dB ~ 50dB (1kHz ~ 10kHz)
Dropout Voltage 60mV
Dropout Voltage1-Nom 0.06V
Voltage Tolerance-Max 3%
Min Current Limit 300mA
Input Voltage Absolute-Max 6.5V
Output Voltage 2 3.1V

Dimensions

Height Seated (Max) 0.675mm
Length 1.56mm
Width 1.56mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
