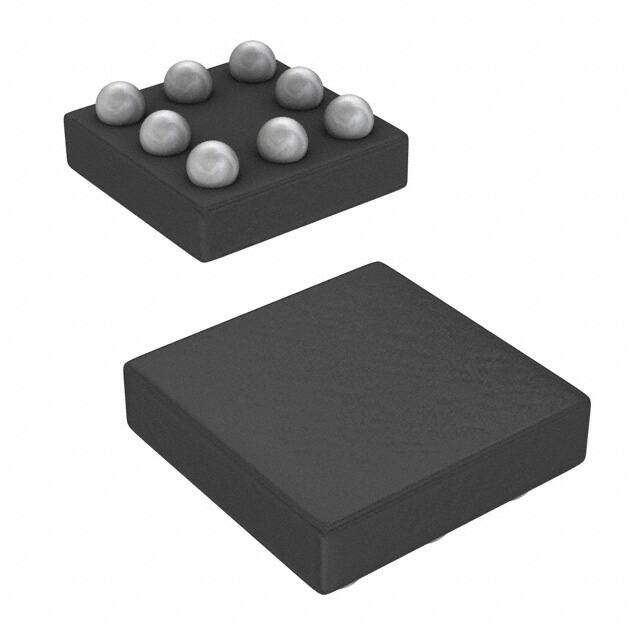

LP3986BL-3133

Texas Instruments
RoHS
RoHS RoHS compliant
Package 8-TFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Discontinued Contains Lead Positive BALL voltage regulator linear -40C~125C 150mA 1.55mm 60mV
PDF
/
Inventory: 8040
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant

Dimensions

Width 1.55mm
Length 1.55mm
Height Seated (Max) 0.995mm

Technical

Output Voltage 2 3.3V
Input Voltage Absolute-Max 6V
Min Current Limit 300mA
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 0.06V
Dropout Voltage 60mV
PSRR 60dB ~ 50dB (1kHz ~ 10kHz)
Voltage Dropout (Max) 0.1V @ 150mA
Current - Quiescent (Iq) 130μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 2
Voltage - Output (Min/Fixed) 3.1V 3.3V
Output Voltage 1 3.1V
Control Features Enable
Quiescent Current 75μA
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Output Voltage 3.3V
Voltage - Input (Max) 6V
Qualification Status Not Qualified
Number of Outputs 2
Current - Supply (Max) 320μA
Base Part Number LP3986
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
JESD-609 Code e0
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Number of Pins 8
Package / Case 8-TFBGA
Mounting Type Surface Mount
Mount Surface Mount

Alternative Model
