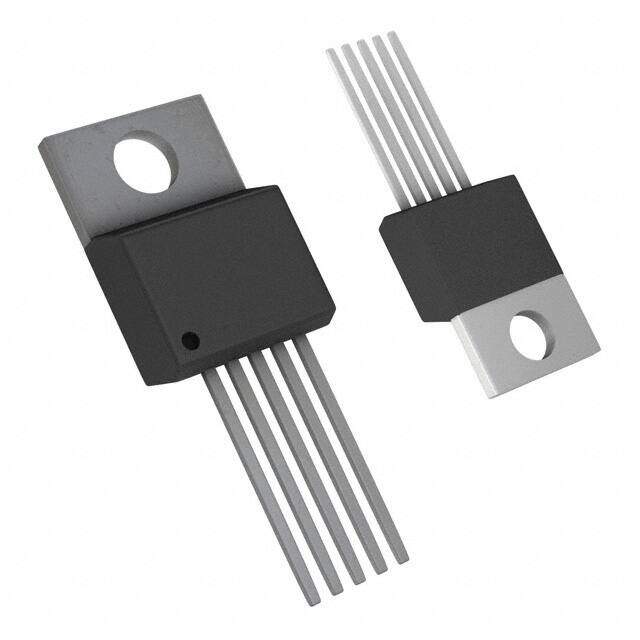

LP38841T-0.8
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LP38841 Tube Through Hole Over Current Over Temperature Short Circuit voltage regulator linear 75mV 800mA -40C~125C
PDF
/
Buying Options
Total Price: USD $4.88
Unit Price: USD $4.88395
≥1 USD $4.88395
≥10 USD $4.00805
≥100 USD $3.88265
≥500 USD $3.75725
≥1000 USD $3.63185
Inventory: 1526
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Nominal Output Voltage 800mV
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 0.075V
Dropout Voltage 75mV
PSRR 80dB ~ 65dB (120Hz ~ 1kHz)
Voltage Dropout (Max) 0.21V @ 800mA
Current - Quiescent (Iq) 30μA
Protection Features Over Current, Over Temperature, Short Circuit
Min Input Voltage 875mV
Number of Regulators 1
Voltage - Output (Min/Fixed) 0.8V
Output Voltage 1 0.8V
Accuracy 1.5 %
Control Features Enable
Quiescent Current 35mA
Output Configuration Positive
Max Output Current 800mA
Output Type Fixed
Output Voltage 800mV
Voltage - Input (Max) 5.5V
Number of Outputs 1
Current - Supply (Max) 40mA
Pin Count 3
Base Part Number LP38841
Number of Functions 1
Terminal Position SINGLE
Technology CMOS
Packing Method RAIL
Subcategory Other Regulators
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Tube
Operating Temperature -40°C~125°C
Physical
Number of Pins 5
Package / Case TO-220-5
Mounting Type Through Hole
Mount Through Hole
