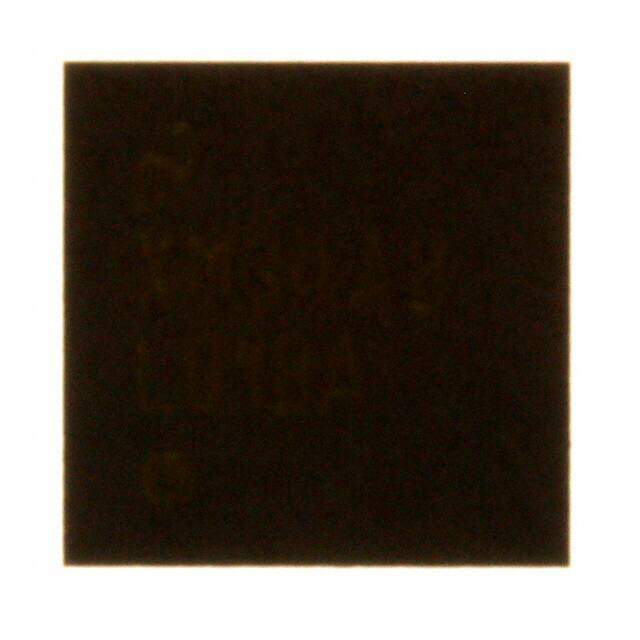

LP2988AILD-3.0/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LP2988 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 180mV 4mm 120muA -40C~125C
PDF
/
Inventory: 6666
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 4mm
Technical
Min Current Limit 250mA
Output Current1-Max 0.2A
Dropout Voltage1-Nom 0.18V
Dropout Voltage 180mV
PSRR 65dB (1kHz)
Voltage Dropout (Max) 0.35V @ 200mA
Current - Quiescent (Iq) 120μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Input Voltage (Min) 4V
Output Voltage 1 3V
Control Features Enable
Output Configuration Positive
Output Type Fixed
Output Voltage 3V
Voltage - Input (Max) 16V
Qualification Status Not Qualified
Number of Outputs 1
Current - Supply (Max) 3.7mA
Base Part Number LP2988
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 200mA
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 8
Package / Case 8-WDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
