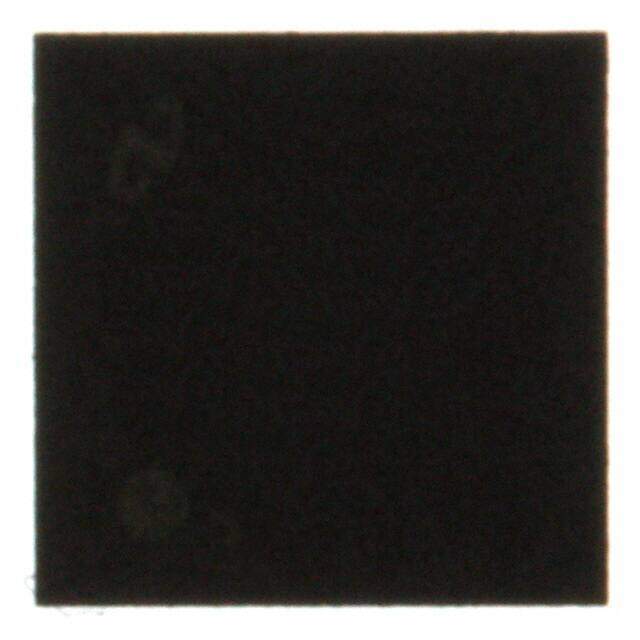

LP2987ILD-5.0/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LP2987 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 180mV 4mm 120muA -40C~125C
PDF
/
Inventory: 8855
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology BIPOLAR
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.8mm
Current Rating 200mA
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number LP2987
Pin Count 8
JESD-30 Code S-PDSO-N8
Current - Supply (Max) 3.7mA
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 16V
Output Voltage 5V
Output Type Fixed
Output Configuration Positive
Control Features Enable
Output Voltage 1 5V
Input Voltage (Min) 6V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq) 120μA
Voltage Dropout (Max) 0.35V @ 200mA
PSRR 65dB (1kHz)
Dropout Voltage 180mV
Dropout Voltage1-Nom 0.18V
Voltage Tolerance-Max 2.8%
Output Current1-Max 0.2A
Min Current Limit 250mA
Dimensions
Height Seated (Max) 0.8mm
Length 4mm
Width 4mm
Compliance
RoHS Status ROHS3 Compliant
