LP2985ITP-2.6/NOPB
RoHS
RoHS compliant

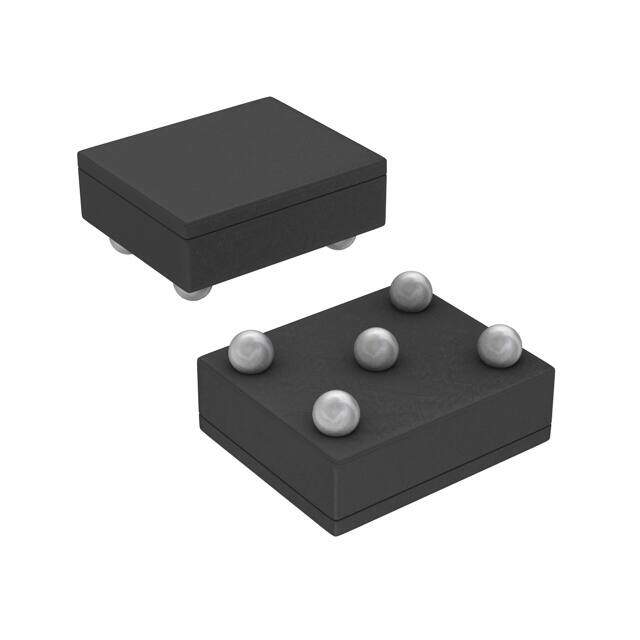

RoHS compliantPackage 5-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Contains Lead Positive BALL Linear Voltage Regulator IC -40C~125C 150mA 280mV
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
Inventory: 2298
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Voltage Tolerance-Max 4%
Dropout Voltage1-Nom 0.28V
Dropout Voltage 280mV
PSRR 45dB (1kHz)
Voltage Dropout (Max) 0.58V @ 150mA
Current - Quiescent (Iq) 95μA
Protection Features Over Current, Over Temperature, Short Circuit
Min Input Voltage 2.5V
Number of Regulators 1
Output Voltage 1 2.6V
Accuracy 3 %
Control Features Enable
Quiescent Current 65μA
Output Configuration Positive
Max Output Current 150mA
Output Type Fixed
Output Voltage 2.6V
Voltage - Input (Max) 16V
Number of Outputs 1
Current - Supply (Max) 2.5mA
Base Part Number LP2985
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 5
Package / Case 5-UFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
