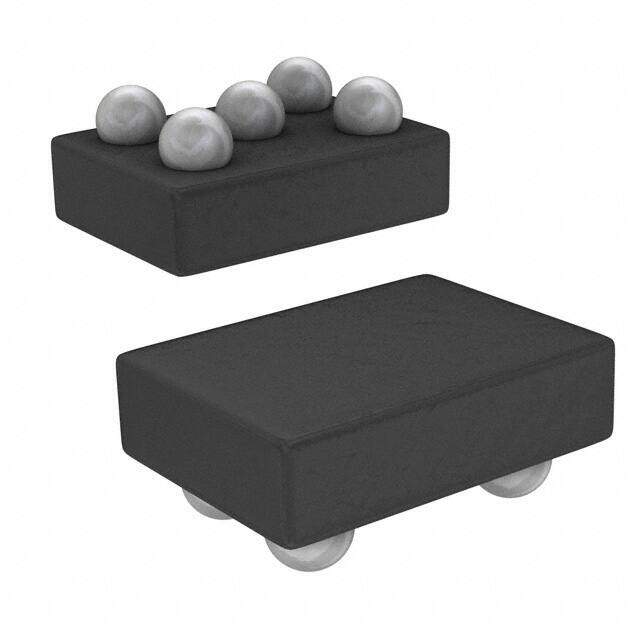

LP2981AIBP-3.2
RoHS
/
Package 5-VFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Contains Lead Positive BALL Linear Voltage Regulator IC -40C~125C 100mA 0.9mm 200mV
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6828
≥1 USD $2.6828
≥10 USD $2.20115
≥100 USD $2.13275
≥500 USD $2.0634
≥1000 USD $1.995
Inventory: 1445
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 0.93mm
Height Seated (Max) 0.9mm
Technical
Min Current Limit 150mA
Dropout Voltage1-Nom 0.2V
Dropout Voltage 200mV
PSRR 63dB (1kHz)
Voltage Dropout (Max) 0.37V @ 100mA
Current - Quiescent (Iq) 95μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Input Voltage (Min) 4.2V
Output Voltage 1 3.2V
Control Features Enable
Current - Output 100mA
Output Configuration Positive
Output Type Fixed
Output Voltage 3.2V
Voltage - Input (Max) 16V
Qualification Status Not Qualified
Number of Outputs 1
Current - Supply (Max) 1.7mA
Pin Count 5
Base Part Number LP2981
Time@Peak Reflow Temperature-Max (s) 40
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Number of Pins 5
Package / Case 5-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
