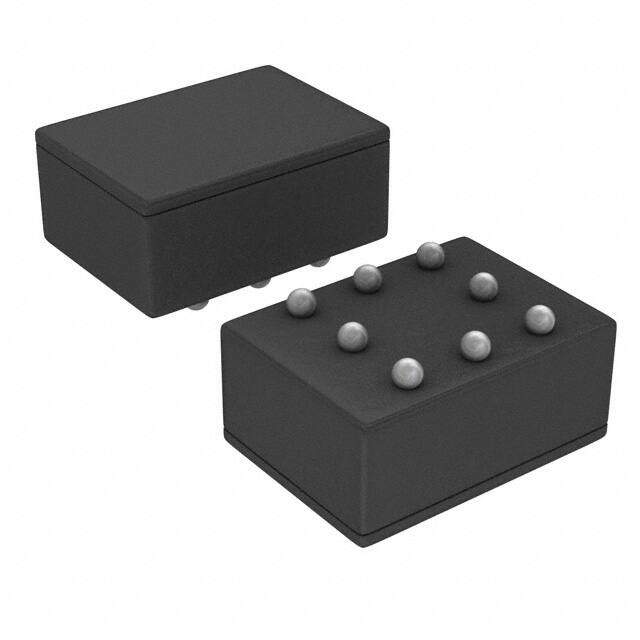

LP2967IBP-2626 image
Favorite
LP2967IBP-2626 image
Favorite

LP2967IBP-2626

Texas Instruments
RoHS
/
Package 8-XFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Obsolete Contains Lead Positive BALL Linear Voltage Regulator IC -40C~125C 150mA 1.946mm 240mV
PDF
/
Inventory: 7797
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Length 1.946mm

Technical

Output Voltage 2 2.6V
Min Current Limit 200mA
Dropout Voltage 240mV
PSRR 52dB ~ 70dB (120Hz ~ 1MHz)
Voltage Dropout (Max) 0.42V @ 150mA
Current - Quiescent (Iq) 300μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 2
Input Voltage (Min) 3.6V
Output Voltage 1 2.6V
Control Features Enable
Quiescent Current 340μA
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Output Voltage 2.6V
Voltage - Input (Max) 16V
Number of Outputs 2
Current - Supply (Max) 5mA
Pin Count 8
Base Part Number LP2967
Terminal Pitch 0.5mm
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Number of Pins 8
Package / Case 8-XFBGA
Mounting Type Surface Mount
Mount Surface Mount
