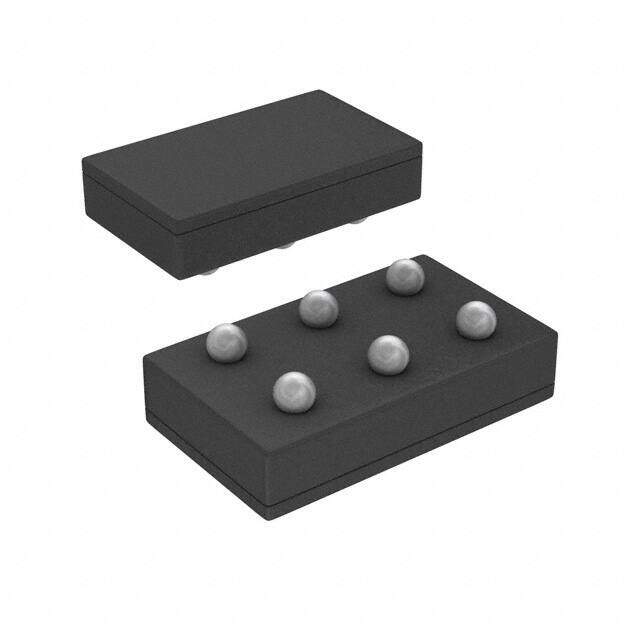

LM317LITPX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 6-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Active Lead Free Positive BALL Linear Voltage Regulator IC 80dB -40C~125C 100mA 575mum
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.72336
≥100 USD $0.686752
≥500 USD $0.564168
≥1000 USD $0.527402
≥3000 USD $0.466083
Inventory: 1413
Minimum: 1
-
+
Technical Details
Technical
Dropout Voltage1-Nom 1.8V
Dropout Voltage 1.8V
Reference Voltage 1.3V
PSRR 80dB ~ 65dB (120Hz)
Protection Features Over Current, Over Temperature, Short Circuit
Min Input Voltage 4.2V
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.2V
Quiescent Current 120μA
Output Configuration Positive
Max Output Current 100mA
Output Type Adjustable
Output Voltage 37V
Voltage - Input (Max) 40V
Number of Outputs 1
Pin Count 6
Base Part Number LM317
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BIPOLAR
Packing Method TR
Subcategory Other Regulators
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Min Current Limit 100mA
Power Supply Rejection Ratio (PSRR) 80dB
Physical
Number of Pins 6
Package / Case 6-UFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 370μm
Width 0m
Length 0m
Height 575μm
