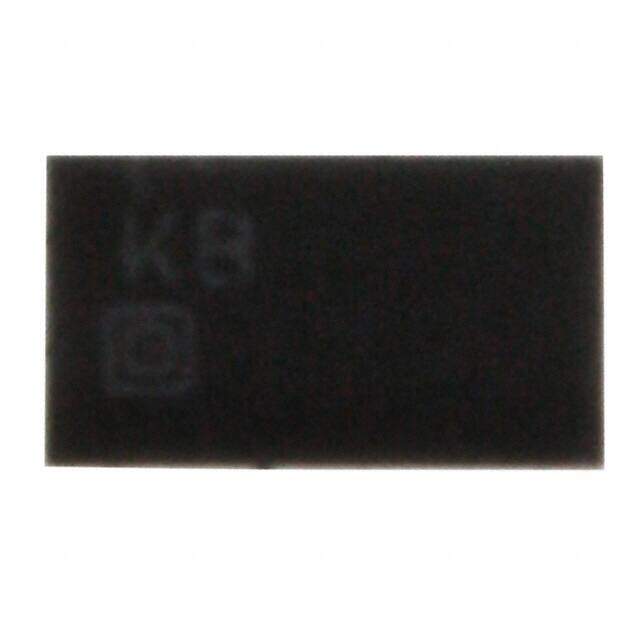

LM2931IBP-5.0/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 6-VFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Positive BALL BIPOLAR voltage regulator linear -40C~85C 100mA 0.5mm 300mV
PDF
/
Inventory: 1656
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 0.955mm
Technical
Dropout Voltage 300mV
PSRR 55dB (120Hz)
Voltage Dropout (Max) 0.3V @ 100mA
Current - Quiescent (Iq) 1mA
Protection Features Over Temperature, Reverse Polarity, Short Circuit
Number of Regulators 1
Input Voltage (Min) 6V
Output Voltage 1 5V
Quiescent Current 1mA
Current - Output 100mA
Output Configuration Positive
Output Type Fixed
Output Voltage 5V
Voltage - Input (Max) 26V
Current - Supply (Max) 15mA
Pin Count 6
Base Part Number LM2931
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BIPOLAR
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Package / Case 6-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
